As the semiconductor industry pushes toward advanced process nodes and higher production volumes, wafer handling equipment is evolving to meet new demands. Among the most essential tools in wafer processing, the 12-inch Wafer Frame Cassette and 6-inch Wafer Frame Cassette play crucial roles in the safe transport, storage, and automation of wafer frames. With manufacturers navigating increasingly complex production requirements, understanding the differences between these two cassette types has become vital for optimizing efficiency and yield.

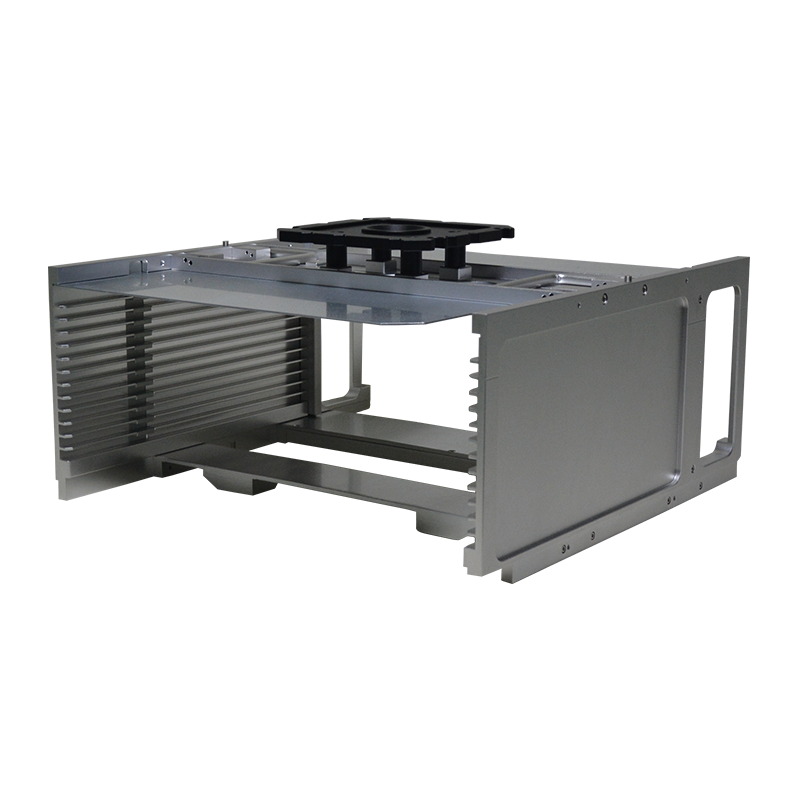

The 12-inch Wafer Frame Cassette is designed for large-diameter wafers widely used in today’s advanced semiconductor fabs. Its increased capacity allows it to hold larger wafer frames—commonly utilized in high-volume applications such as processor chips, memory modules, and power devices. The larger size offers greater throughput per batch, making it highly suitable for modern automated lines where speed and efficiency are key. In cutting-edge fabs operating at 300 mm wafer standards, 12-inch cassettes help streamline dicing, inspection, and transport with minimal manual handling, reducing contamination risks and production delays.

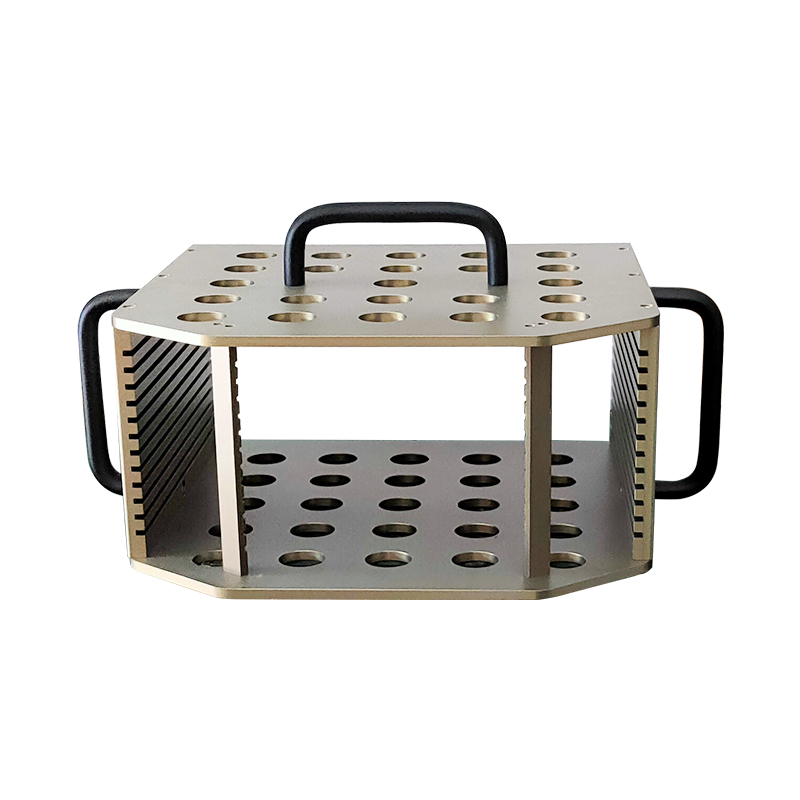

By contrast, the 6-inch Wafer Frame Cassette remains essential for legacy fabs, specialty semiconductor production, and applications where smaller wafer sizes are preferred. Industries such as MEMS, optoelectronics, sensors, RF devices, and niche power components still rely heavily on 150 mm wafer processing. For these sectors, the 6-inch cassette offers the ideal fit, providing stable support and precise slot alignment tailored to smaller wafer frames. Its compact size also makes it easier to handle manually and fits well within equipment designed for older production standards.

One of the major differences between the two cassette types lies in automation compatibility. The 12-inch cassette is optimized for fully automated systems, with standardized interfaces that integrate smoothly with high-speed wafer loaders, robotic arms, and inline inspection equipment. This level of automation is essential for achieving high productivity and low defect rates in advanced semiconductor manufacturing. The 6-inch cassette, while also compatible with automation, is more commonly seen in semi-automated or hybrid production lines where flexibility and cost control are priorities.

Cleanroom performance is another area where both cassette types demonstrate strong capability, though their use cases differ. The 12-inch cassette typically features reinforced structures, anti-static materials, and enhanced cleanliness suitable for ISO Class 3–5 environments. As modern semiconductor nodes become increasingly sensitive to contamination, robust handling equipment becomes critical. Meanwhile, 6-inch cassettes also offer cleanroom-safe materials and designs but are generally applied in less stringent environments associated with mature processes.

Cost considerations also play a role in determining which cassette type is adopted. While 12-inch cassettes tend to be more expensive due to larger size and advanced structural design, their contribution to throughput and yield often offsets the investment for high-volume fabs. Conversely, 6-inch cassettes offer a more economical solution for industries that prioritize flexibility and do not require cutting-edge wafer sizes.

As semiconductor manufacturing becomes more diversified—balancing advanced node production with expanding specialty chip markets—both cassette sizes will continue to play important roles. The 12-inch Wafer Frame Cassette supports the high-speed, high-precision needs of leading-edge fabs, while the 6-inch Wafer Frame Cassette remains vital for specialized and legacy processes that power everything from sensors to automotive electronics.

With global demand for chips growing across every sector, choosing the right wafer handling tools is essential for maintaining efficiency, yield, and long-term manufacturing success.
