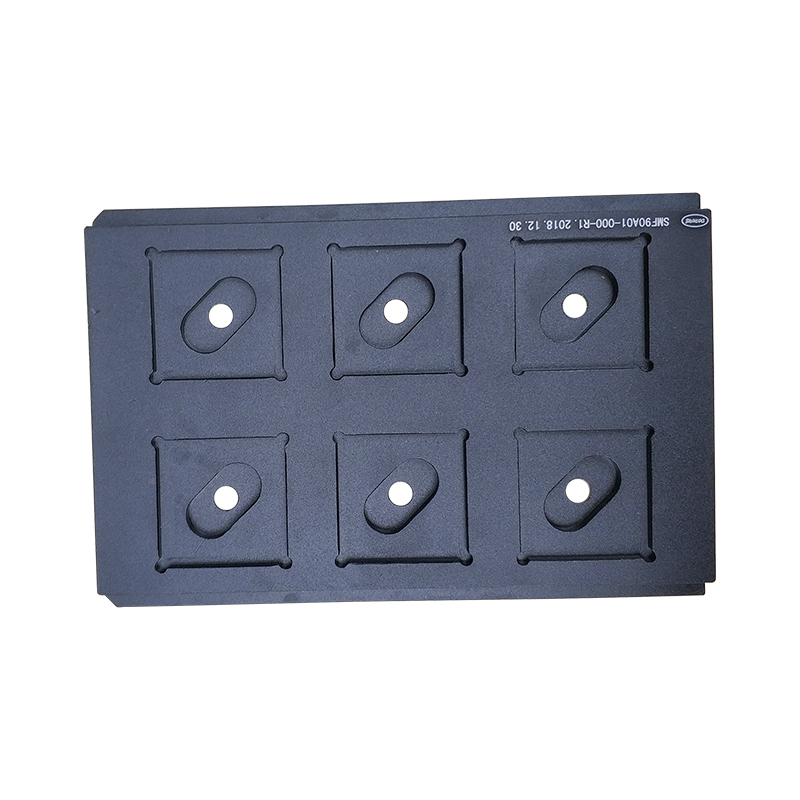

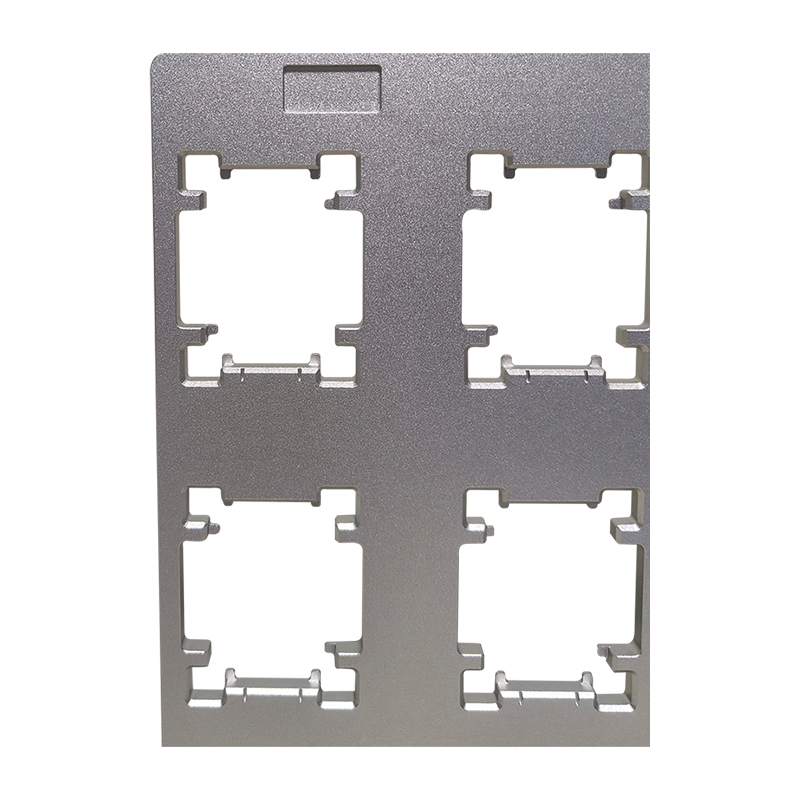

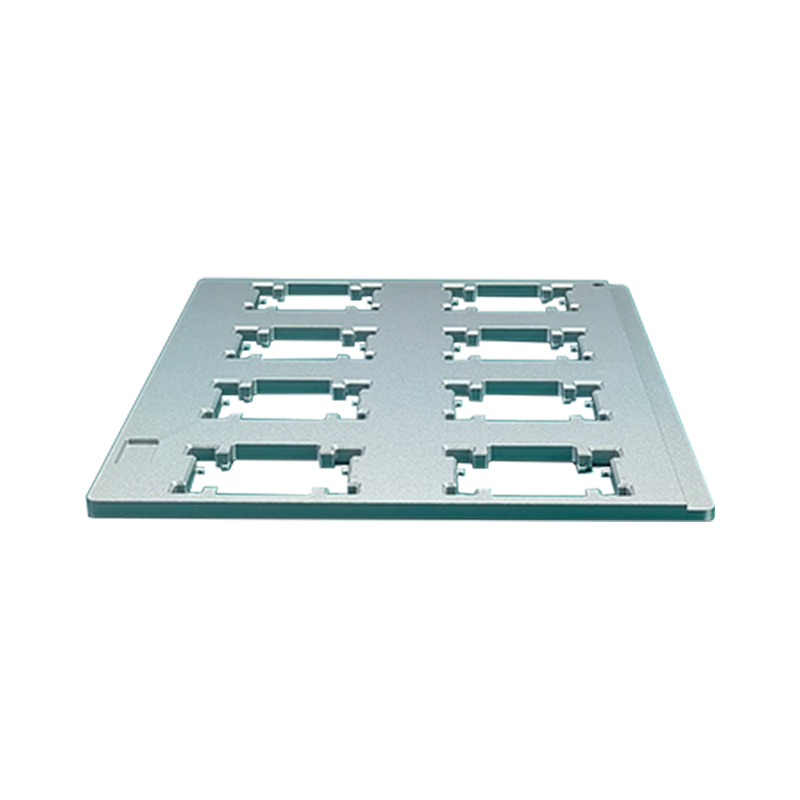

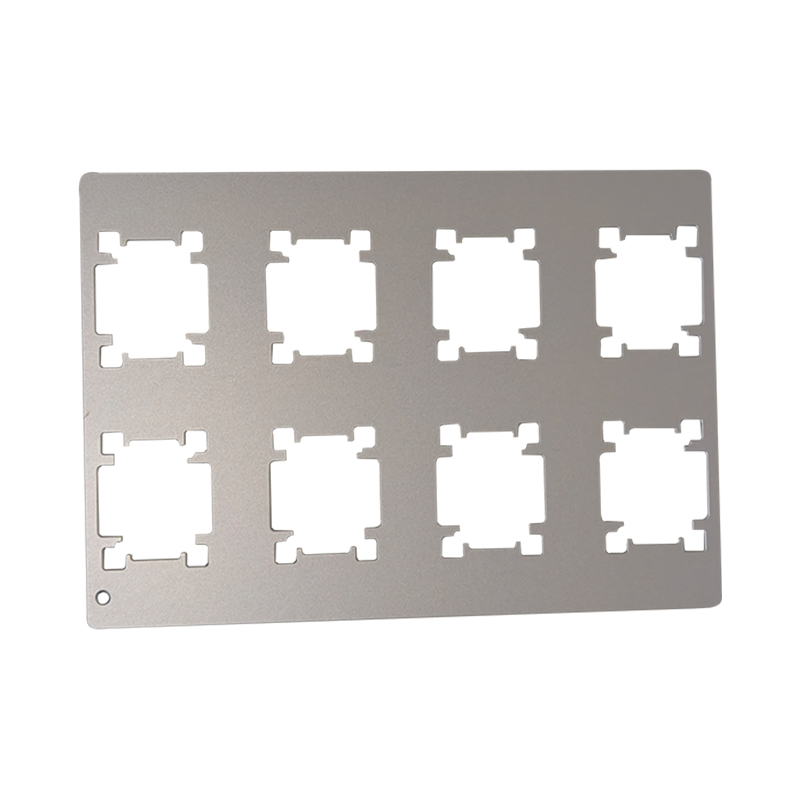

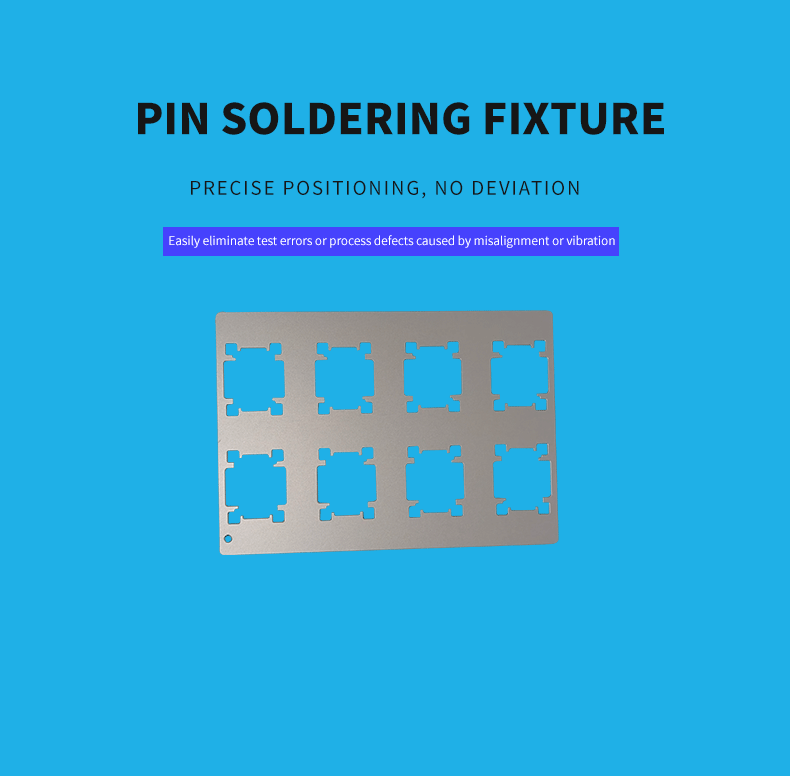

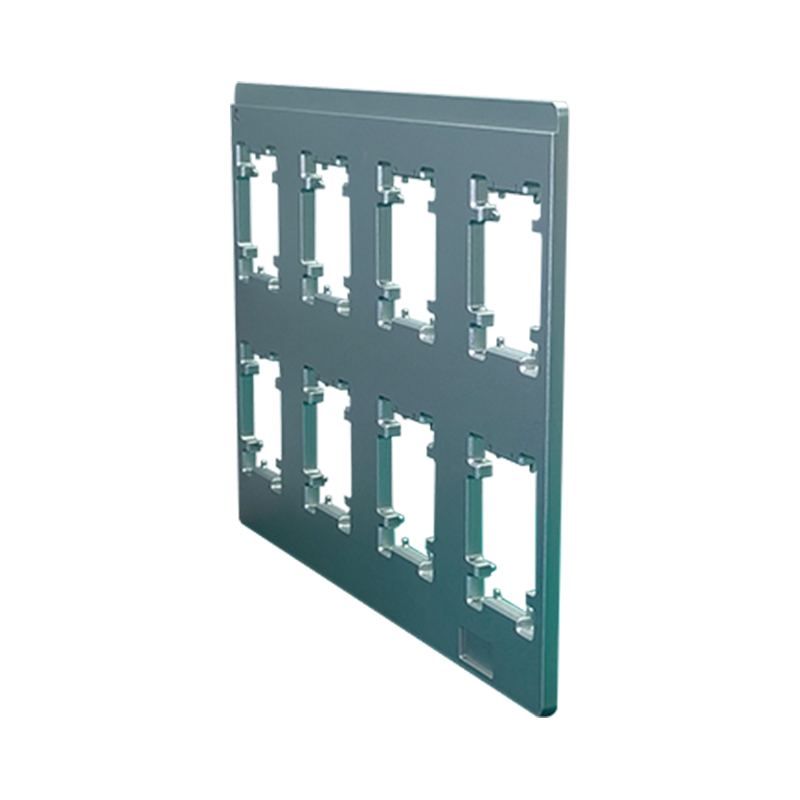

The DOHONE PIN soldering tray is made of AL6061 aluminum alloy with a natural color plain anodized surface treatment, presenting a uniform and natural color. Through multiple mechanical deburring and edge rounding processes, the tray surface and areas around the holes are free of burrs and sharp edges, ensuring that the PIN insertion does not scratch the plating while also protecting the operator. The overall structure balances robustness and lightness, adapting to the high-frequency loading and unloading rhythm of an automatic PIN soldering production line. After experiencing soldering thermal cycles and mechanical vibration, the tray maintains its original flatness without significant warping or dimensional drift, with a service life meeting expectations.

Formed in a single machining operation using high-precision CNC equipment, the tray achieves stringent control over the positional accuracy and hole diameter tolerances of the PIN positioning holes, with smooth and vertical hole walls. After vertical insertion, the PIN achieves self-locking positioning relying on the fit precision of the holes themselves, without the need for additional clamping devices. During the soldering process, the PIN body does not shake, tilt, or sink. This tray fundamentally eliminates quality issues such as uneven solder wicking, pin tip offset, cold solder joints, or solder bridging caused by poor positioning, significantly improving the first-pass yield of PIN soldering and the reliability of the assembly.

Custom Services

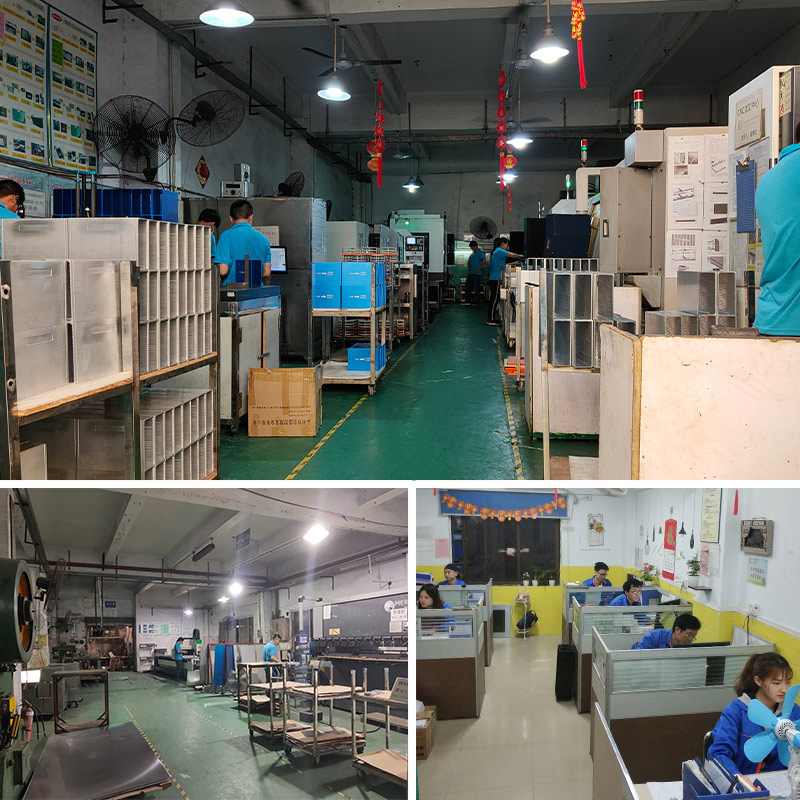

Founded in 2003, DOHONE specializes in semiconductor chip handling and storage solutions, having delivered 3,000+ customized product solutions to industry clients, all highly favored for their precision. We are confident in our ability to assist you. Simply provide your design specifications or samples, and we will deliver a tailored solution that meets your exact needs.

Q&A

Are you a factory or a trading company?

We are a factory.

How many staffs do you have in your factory?

Our company has nearly 70 staffs.

How many years have your company made this kind of equipment?

Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.

What shall we do if we do not have drawings?

Please send your sample to our factory, then we can copy or provide you with better solutions, please send us pictures or drafts with dimensions(Thickness, Length, Height, and Width), CAD or 3D file will be made for you if you placed the order.

What kinds of information do you need for a quote?

In order to quote for you earlier, please provide us with the following information together with your inquiry.

1.Detailed drawings(STEP,CAD,SOLID Works,DXF,PDF)

2.Material requirement(AL6061,AL7075,AL6063)

3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)

4.Quantity(per order/per month/annual)

5. Any special demands or requirements, such as packing, delivery, labels, etc.

6.when do you expect to need the product?

What is your MOQ?

For custom products, the minimum order quantity (MOQ) can only be determined after confirming the product requirements.
