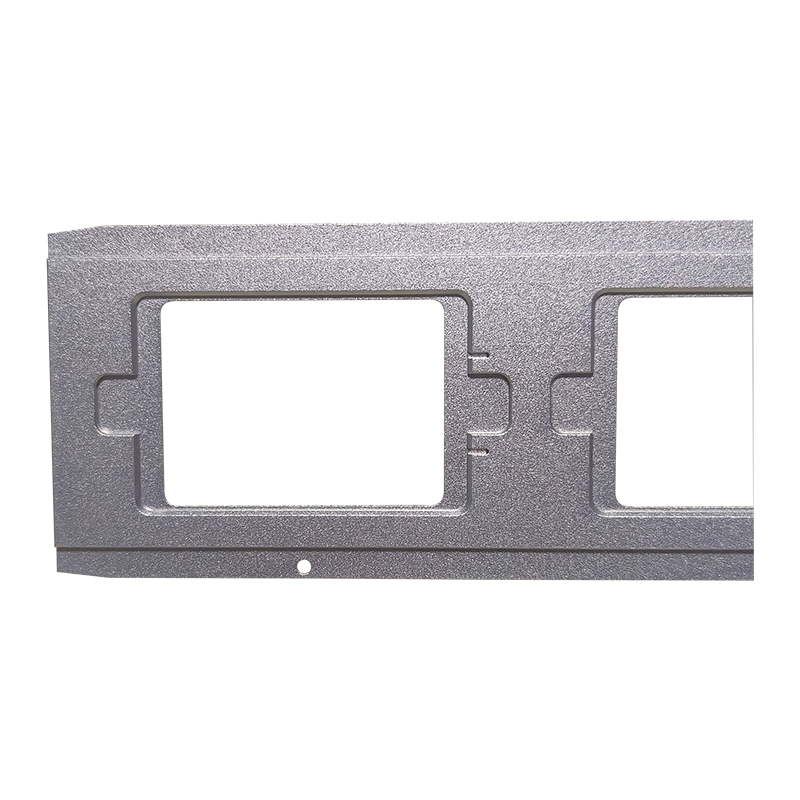

Bonding TARY DSF90C33
Product Name: Bonding TARY DSF90C33
Number: DSF90C33-000-R0
Size: 240(L)×60.4(W)×1(H)mm
Material: Aluminum alloy 6061(AL6061)
Product Process: CNC precision machining
Surface treatment: Hard Anodizing
Product Description
The DOHONE bonding tray is made of AL6061 aluminum alloy with a natural color plain anodized surface treatment, presenting a uniform and natural matte texture. Through fine deburring and edge chamfering processes, the tray features smooth edges and no sharp corners, ensuring operator safety while preventing scratches to chips or lead frames. The structural design balances light weight and high strength, allowing long-term use on high-frequency pick-and-place, cyclic bonding production lines while maintaining original flatness and resisting permanent deformation, effectively extending the tooling replacement cycle.
With single-clamping forming on a high-precision CNC machining center, the tray cavity achieves excellent dimensional consistency and precision-level flatness control. Chips or substrates naturally self-center upon placement, and a slight frictional resistance provides stable positioning without the need for additional clamping devices. During ultrasonic bonding or thermocompression bonding processes, the tray resists position drift caused by high-frequency equipment vibration, eliminating issues such as bond point shift, tail pulling, or wire collapse resulting from poor tray positioning, thereby fundamentally improving bonding process stability and module packaging yield.
Custom Services
Founded in 2003, DOHONE specializes in semiconductor chip handling and storage solutions, having delivered 3,000+ customized product solutions to industry clients, all highly favored for their precision. We are confident in our ability to assist you. Simply provide your design specifications or samples, and we will deliver a tailored solution that meets your exact needs.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What shall we do if we do not have drawings?
Please send your sample to our factory, then we can copy or provide you with better solutions, please send us pictures or drafts with dimensions(Thickness, Length, Height, and Width), CAD or 3D file will be made for you if you placed the order.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Detailed drawings(STEP,CAD,SOLID Works,DXF,PDF)
2.Material requirement(AL6061,AL7075,AL6063)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
For custom products, the minimum order quantity (MOQ) can only be determined after confirming the product requirements.
