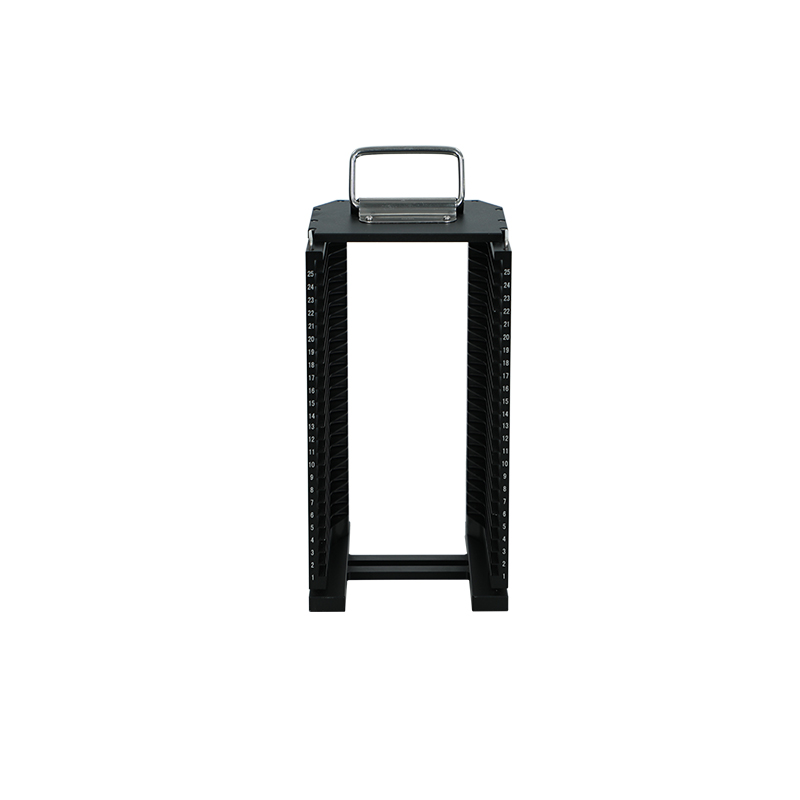

4 Inch 25 Slot H04-R1 Metal Wafer Cassette (8.7 mm Slot Pitch)
Product Name: 4 Inch 25 Slot H04-R1 Metal Wafer Cassette (8.7 mm Slot Pitch)
Number: DSF21H04-000-R1

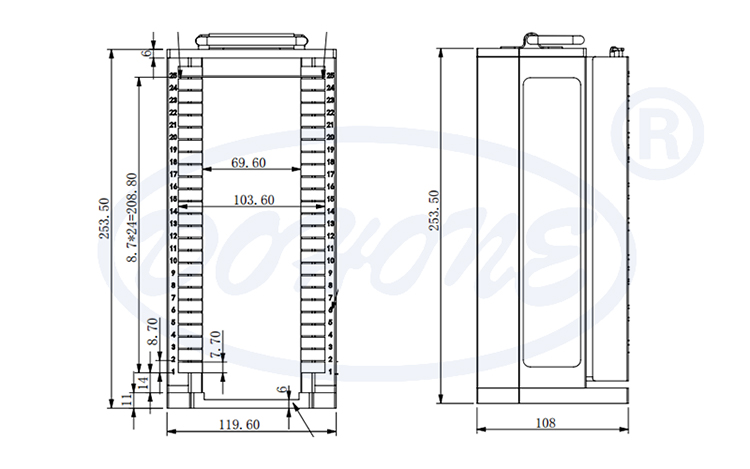

Size: 119.6(L)×108(W)×253.5(H)mm
Material: Aluminum alloy 6061(AL6061)
Number of slots: 25 slots
Slot Pitch: 8.7 mm
Initial slot position: 24.15 mm

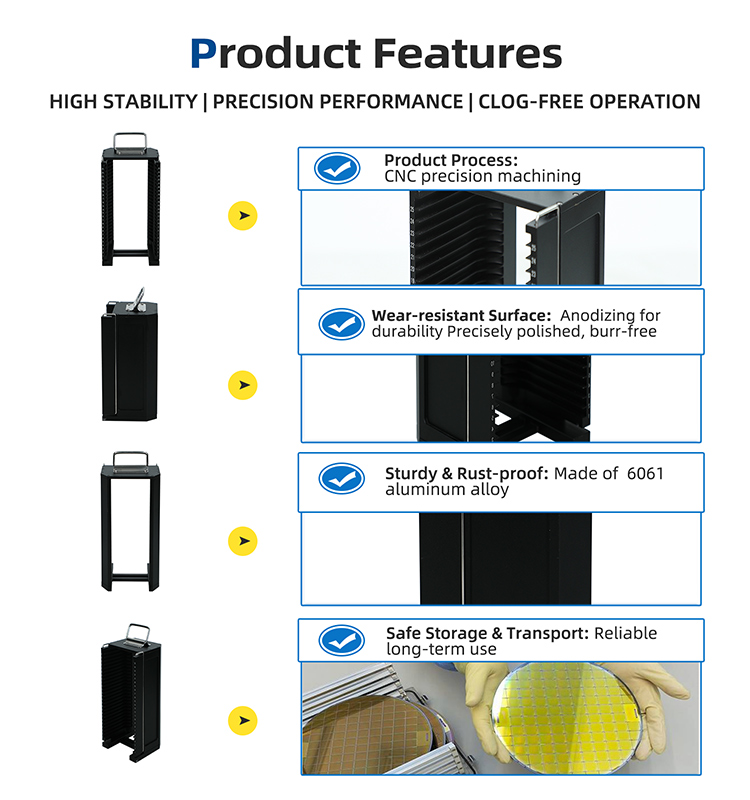

Product Process: CNC precision machining
Surface treatment: Hard Anodizing
Supported Wafer Diameter: 100 mm
Product Description
The DOHONE 4-inch 25-slot Metal Wafer Cassette is a customized wafer-handling solution meticulously designed to meet the precise requirements of semiconductor production line processes. It is specifically tailored for high-precision manufacturing scenarios in semiconductor equipment production.
Addressing the personalized needs of core production workflows, this wafer cassette achieves dual breakthroughs in structural design and process refinement. Its core frame is crafted from high-quality aluminum alloy and undergoes precision CNC machining along with multiple polishing and oxidation processes, achieving micron-level flatness and dimensional accuracy—effectively eliminating the risk of wafer misalignment during handling. The product surface receives a specialized oxidation treatment, resulting in a mirror-smooth finish free from any burrs, scratches, or residue, thereby preventing micro-damage to wafer surfaces caused by contact friction and ensuring optimal wafer yield.
With seamless compatibility to customer equipment, this wafer cassette not only meets stringent technical standards on the equipment side but also adapts to the handling requirements of multiple critical processes such as etching and thin-film deposition, significantly enhancing production line compatibility and operational stability. Thanks to its exceptional quality and customized service capabilities, this wafer cassette has gained high recognition from semiconductor equipment manufacturers worldwide. It has established long-term strategic partnerships with several leading enterprises, becoming a reliable choice for precision wafer handling in semiconductor manufacturing.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
