4 Inch 25 Slot D04-R0 Metal Wafer Cassette (4.76 mm Slot Pitch)
Product Name: 4 Inch 25 Slot D04-R0 Metal Wafer Cassette (4.76 mm Slot Pitch)
Number: DSF20D04-000-R0

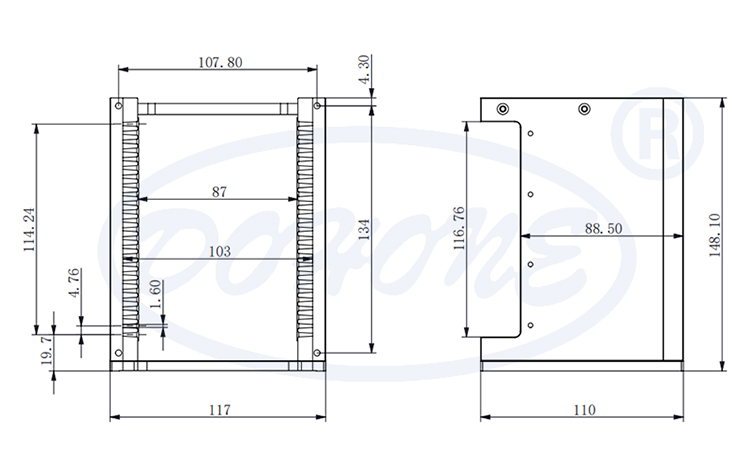

Size: 117(L)×110(W)×148.1(H)mm
Material: Aluminum alloy 7075(AL7075)
Number of slots: 25 slots
Slot Pitch: 4.76 mm
Initial slot position: 19.7mm
Product Process: CNC precision machining
Surface treatment: Hard Anodizing
Supported Wafer Diameter: 100 mm
Product Description
To address the stringent demands of ultrathin 4-inch wafer storage scenarios, the DOHONE 4-inch metal wafer cassette breaks through traditional design limitations by innovatively adopting a Teflon-backed stopper structure, providing professional-grade protection for wafer safe storage and transportation.

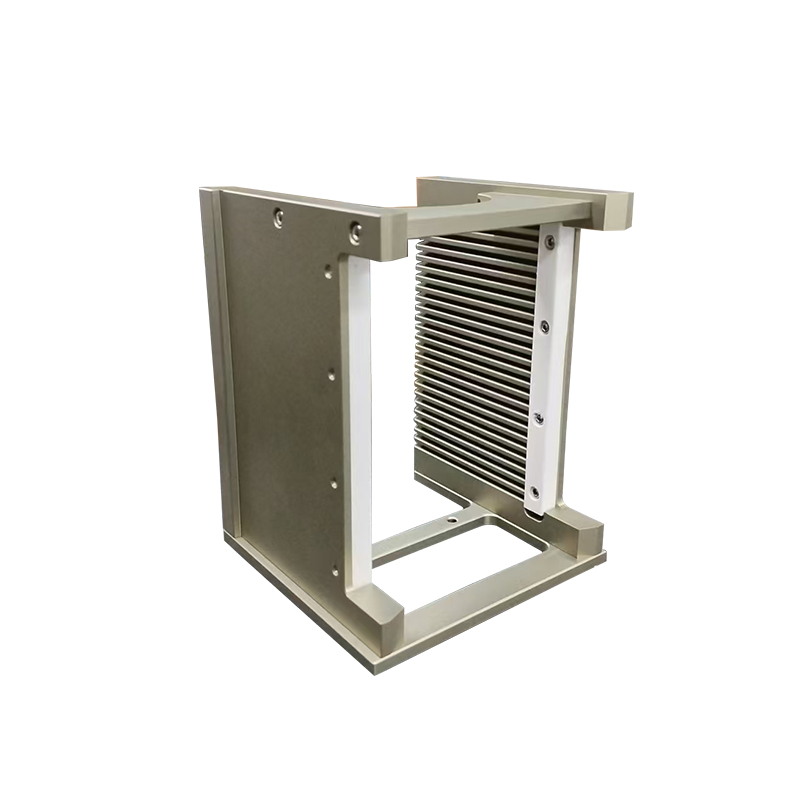

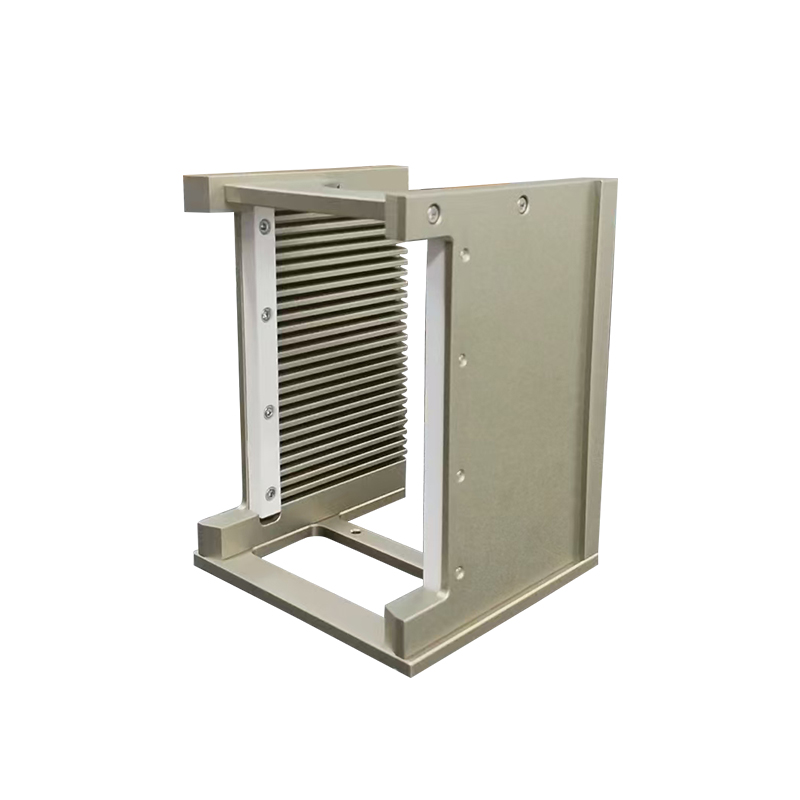

Teflon offers excellent properties such as low friction coefficient, wear resistance, and impact resistance. The Teflon-backed stopper creates a flexible buffer barrier during wafer handling. In cases of operational errors such as excessive pushing force, the stopper quickly disperses impact energy, preventing direct rigid collisions between the wafer edge and the metal cassette. This fundamentally addresses industry pain points like edge chipping and notch damage commonly seen in ultrathin wafers.
Compared to traditional metal or plastic stoppers, Teflon combines chemical stability and high-temperature resistance, making it compatible with various process conditions in semiconductor production environments without generating particle contamination, thus ensuring wafer surface cleanliness. The product is specifically customized for ultrathin 4-inch wafers, precisely matching their fragile and delicate physical characteristics. Whether for long-term static storage or frequent handling operations, it ensures safe wafer protection, providing a stable and reliable carrying solution for scenarios such as semiconductor device R&D and small-batch production.
Founded in 2003, DOHONE specializes in semiconductor chip handling and storage solutions, having delivered 3,000+ customized product solutions to industry clients, all highly favored for their precision. We are confident in our ability to assist you. Simply provide your design specifications or samples, and we will deliver a tailored solution that meets your exact needs.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
