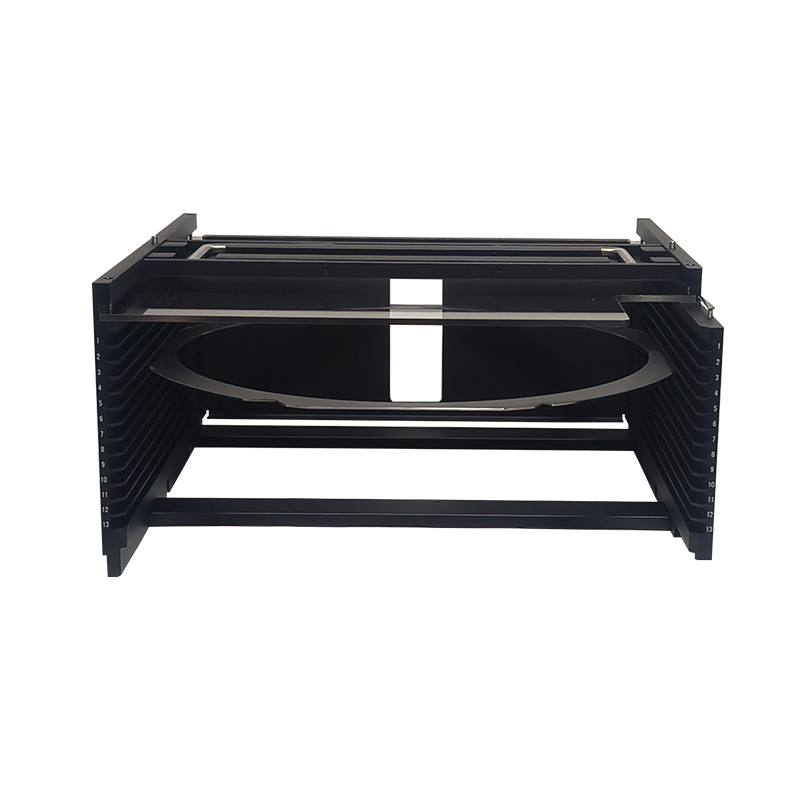

12Inch 13 Slot M12 -R14 Wafer Frame Cassette (10mm Slot Pitch)
Product Name: 12Inch 13 Slot M12 -R14 Wafer Frame Cassette (10mm Slot Pitch)
Number: DSF20M12-000-R14

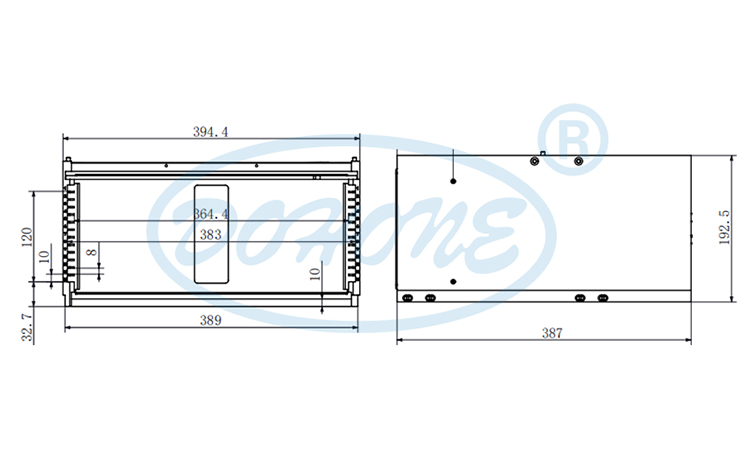

Size: 394.4(L)×387(W)×192.5(H)mm
Material: Aluminum alloy 6063(AL6063)
Number of slots: 13slots
Slot Pitch: 10 mm
Initial slot position: 32.7 mm
Product Process: CNC precision machining
Surface treatment: Anodization
Product Description
The 12" 13 Slot Wafer Frame Cassette is a critical carrier tool in the semiconductor manufacturing process. It is primarily used in the crucial wafer dicing stage before chip packaging, where the complete wafer is divided into individual chip units to ensure the safety of the wafer during cutting, storage, and transportation. The quality of the wafer cassette directly impacts production yield and cost control. Dohone Company, a manufacturer specializing in comprehensive semiconductor chip protection solutions, has over 20 years of experience in wafer cassette production and processing, with mature and stable process technology. The products have long been applied in the production facilities of global top 500 semiconductor companies.
Advantages of Dohone Cassettes:
CNC precision machining, surface polishing and heat treatment, burr-free, smooth surfaces, and high dimensional accuracy. This reduces wafer damage caused by burrs in the cassette slots or poor surface treatment during production. Made from SGS-certified premium aluminum material, the cassettes are wear-resistant and do not deform during use. This minimizes issues such as jamming of the iron ring and frequent machine alarms caused by cassette wear or deformation. Diverse size designs meet the technical requirements of different customer equipment. The unique slot chamfer design ensures 100% prevention of slot contact with the wafer.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
