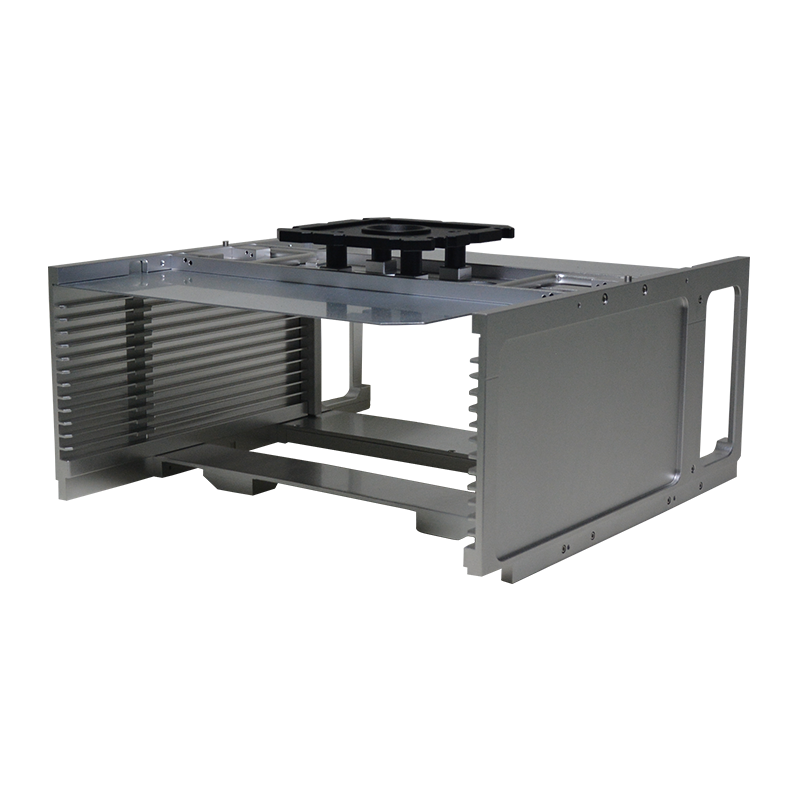

12Inch 13 Slot 24T12-R3 Wafer Frame Cassette (10mm Slot Pitch)
Product Name: 12Inch 13 Slot 24T12-R3 Wafer Frame Cassette (10mm Slot Pitch)
Number: DSF24T12-000-R3

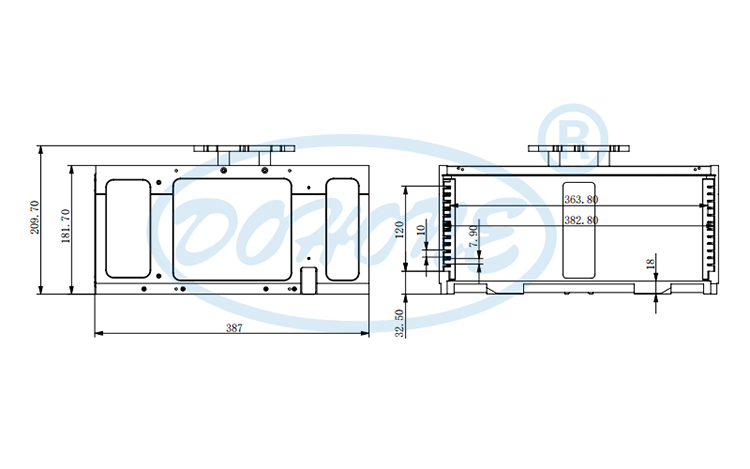

Size:393.8(L)×387(W)×209.7(H)mm

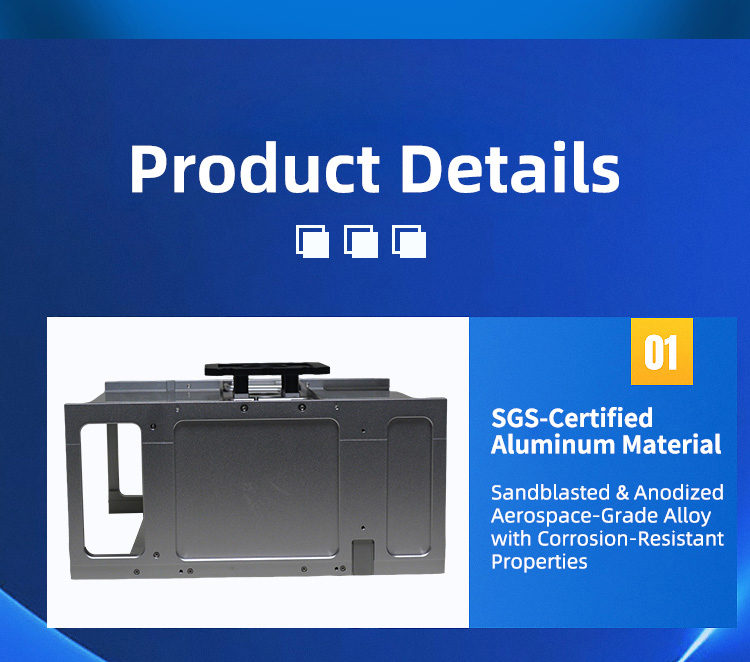

Material: Aluminum alloy 6063(AL6063)
Number of slots: 13slots
Slot Pitch: 10 mm
Initial slot position: 32.5 mm

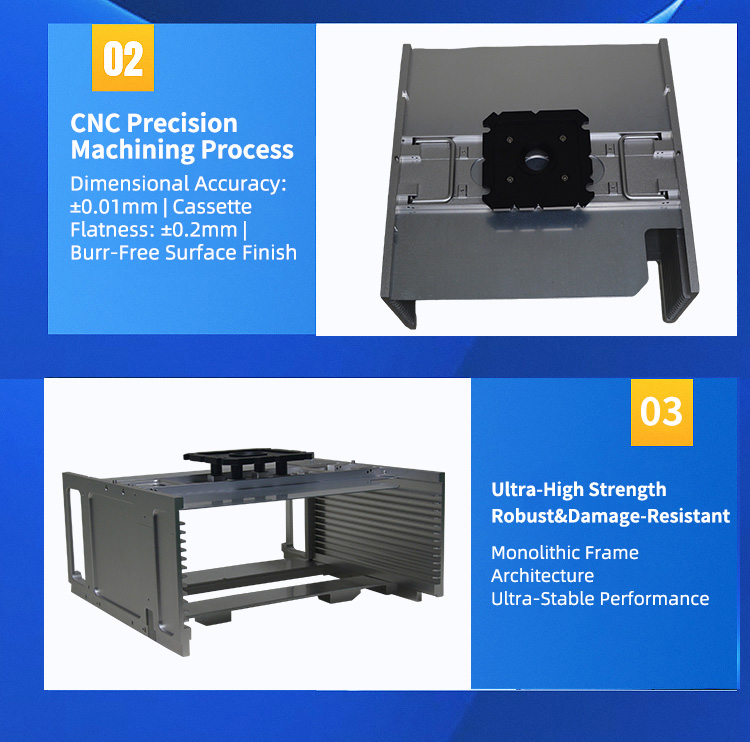

Product Process: CNC precision machining
Surface treatment: Anodization
Product Description
In the automated process of semiconductor wafer manufacturing, the stability and compatibility of wafer transport carriers directly impact production efficiency and product yield. Addressing this core need, the DOHONE 12-Inch Wafer Frame Cassette innovatively incorporates two key designs, providing robust support for automated operations in semiconductor workshops.

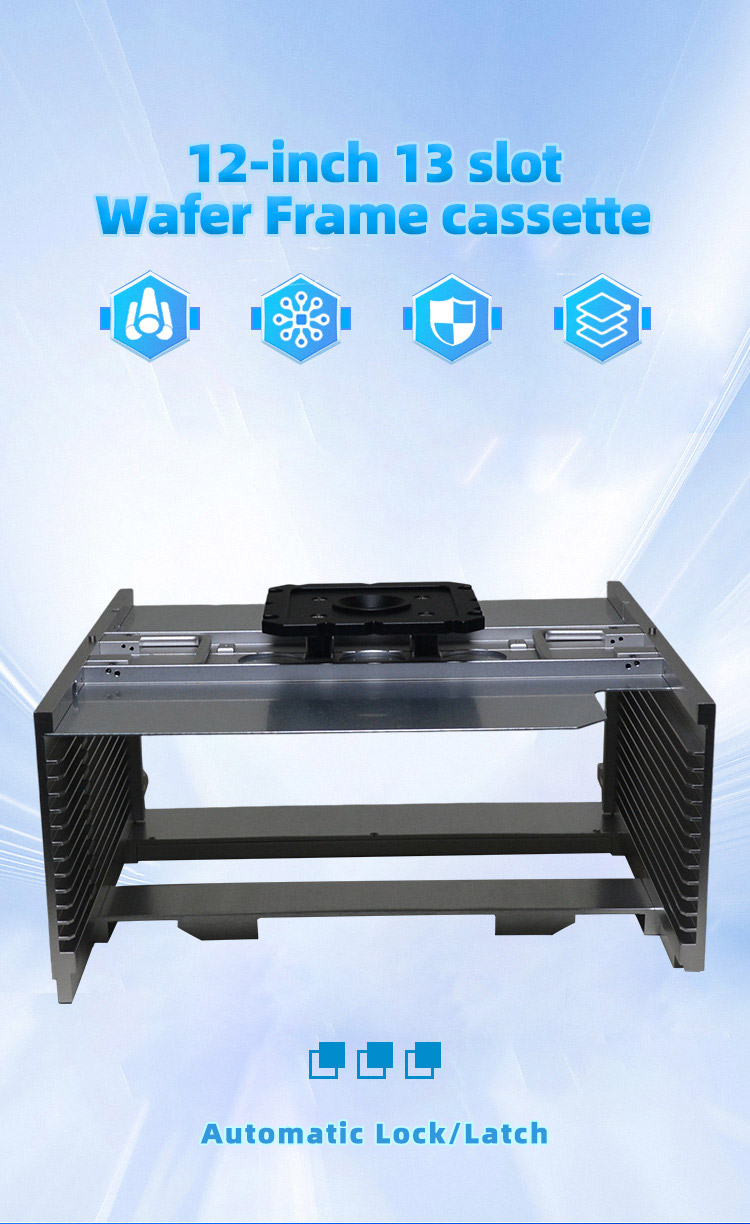

Its top features an specially added mushroom head structure and a built-in automatic locking mechanism, which work together efficiently. The mushroom head enables precise docking with the automated overhead hoist transport system in the workshop, allowing for quick positioning and gripping while avoiding manual alignment errors. The built-in automatic lock engages immediately after the hoist grips the cassette, ensuring no displacement or shaking during transport. This design perfectly meets the continuous operation requirements of automated production lines, allowing processed wafers to transfer safely and smoothly to the next process.
Founded in 2003, DOHONE specializes in semiconductor chip handling and storage solutions, having delivered 3,000+ customized product solutions to industry clients, all highly favored for their precision. We are confident in our ability to assist you. Simply provide your design specifications or samples, and we will deliver a tailored solution that meets your exact needs.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
