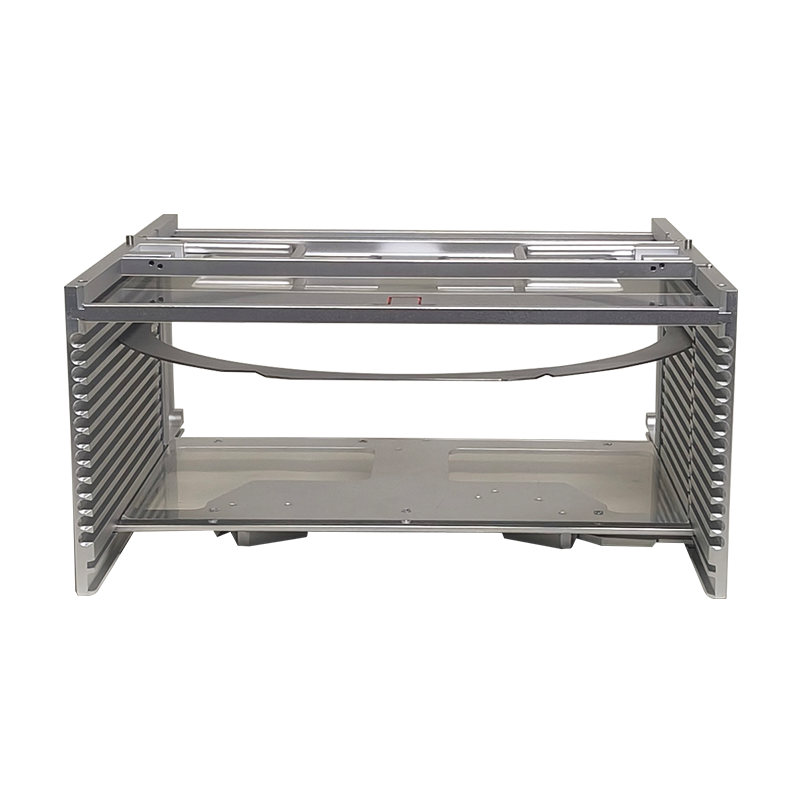

12Inch 13 Slot B12-R10 Wafer Frame Cassette (10mm Slot Pitch)
Product Name: 12Inch 13 Slot B12-R10 Wafer Frame Cassette (10mm Slot Pitch)
Number: DSF20B12-000-R10

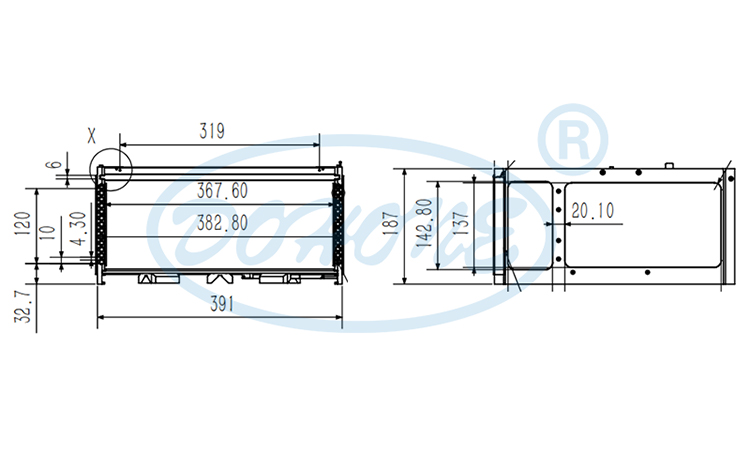

Size: 391(L)×389(W)×187(H)mm

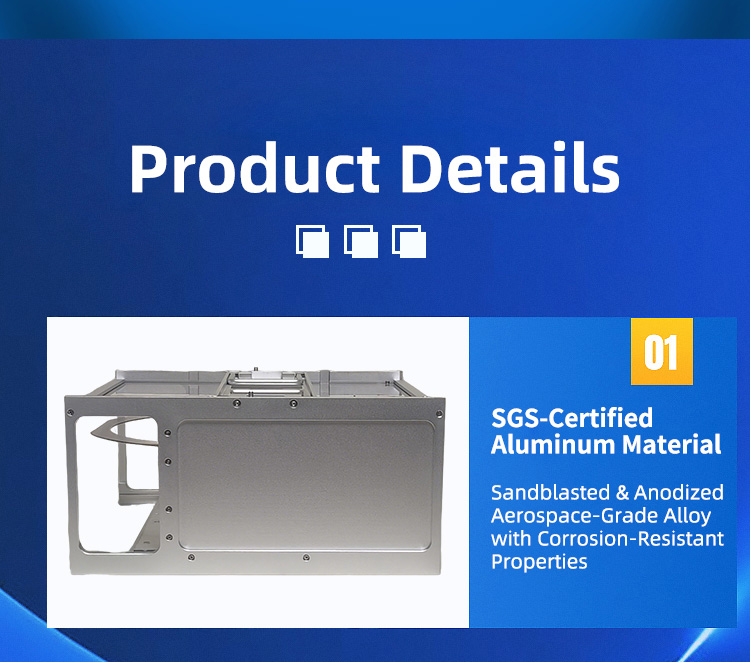

Material: Aluminum alloy 6063(AL6063)
Number of slots: 13slots
Slot Pitch: 10 mm
Initial slot position: 32.7 mm

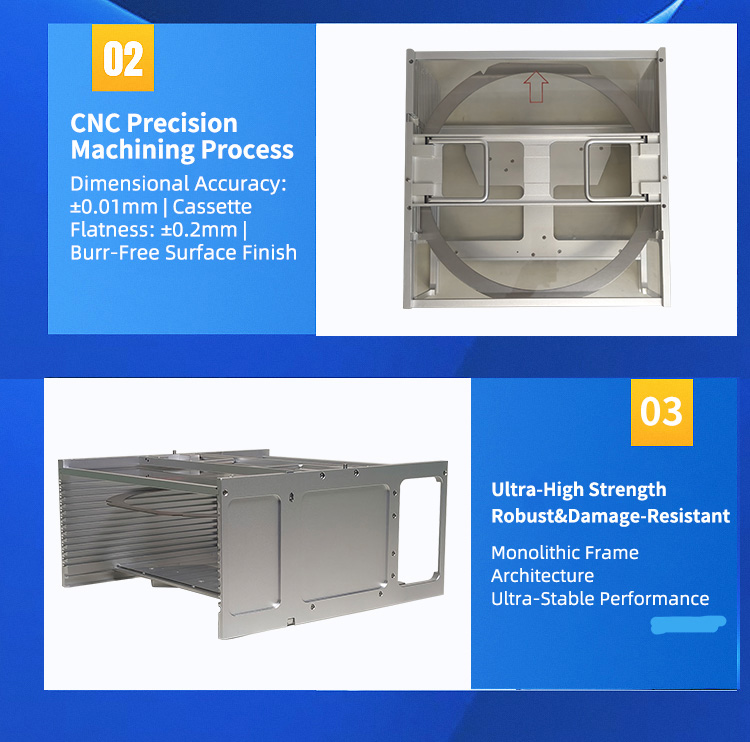

Product Process: CNC precision machining
Surface treatment: Anodization
Product Description
In the semiconductor manufacturing industry, the efficiency and convenience of the wafer handling process directly impact the capacity and stability of the entire production line. DOHONE, a company dedicated to the R&D of semiconductor auxiliary equipment, has introduced the 12-Inch Wafer Frame Cassette. With its innovative automatic locking design, it has completely revolutionized traditional handling methods, injecting high efficiency into workshop production.
Traditional 12-Inch Wafer Frame Cassettes often use a manual push-and-rotate locking mechanism. When handling wafers, operators must first precisely align the locking lever, manually press and rotate it to unlock, and then carefully lift the wafer for transfer to the next process. This procedure is not only cumbersome and redundant but also prone to issues such as lever jamming or unsmooth unlocking due to variations in operator skill. Such inefficiencies consume significant manual time and increase the risk of wafer damage during handling caused by operational errors.

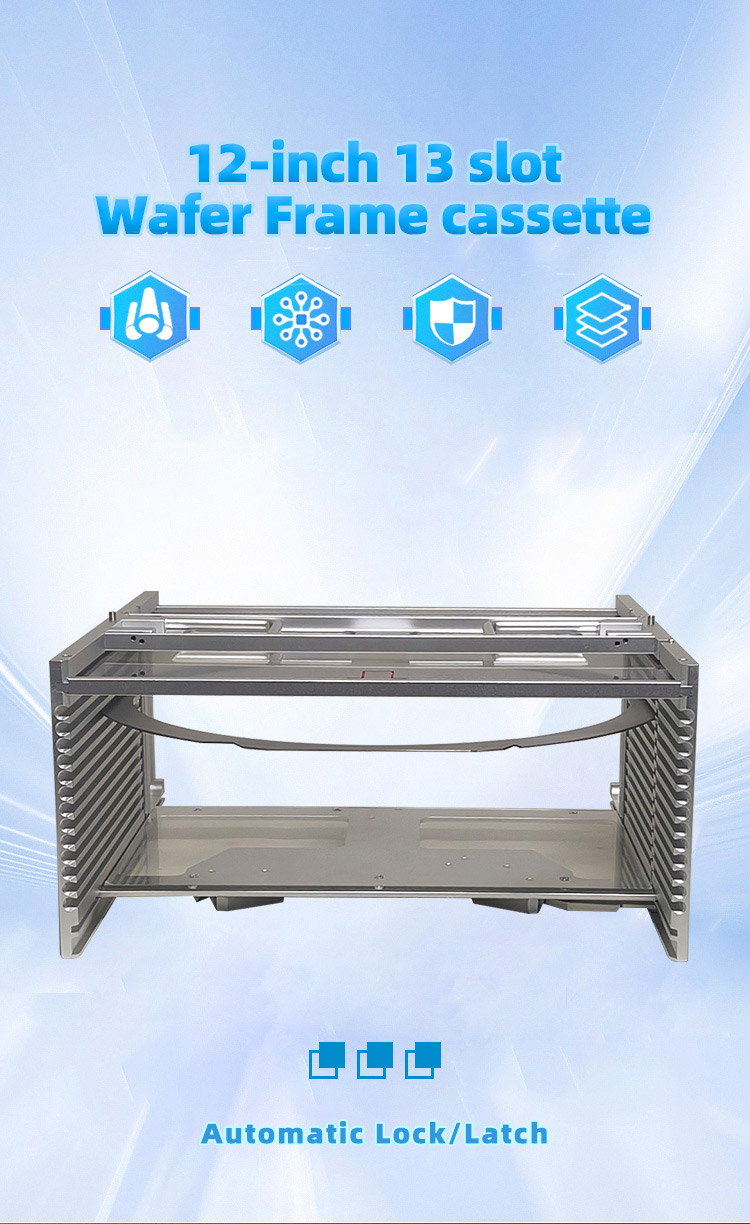

The Dohone 12 inch 13 Slot Wafer Frame Cassette adopts an automatic lock design. Once the wafer processing is completed, there is no need for additional manual unlocking operations such as "pressing and rotating." Simply lift the processed wafer smoothly to quickly transfer it to the next process.
This convenient "lift and go" design significantly simplifies the operation flow, freeing workers from repetitive and tedious mechanical actions. It not only reduces labor intensity but also improves production efficiency.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
