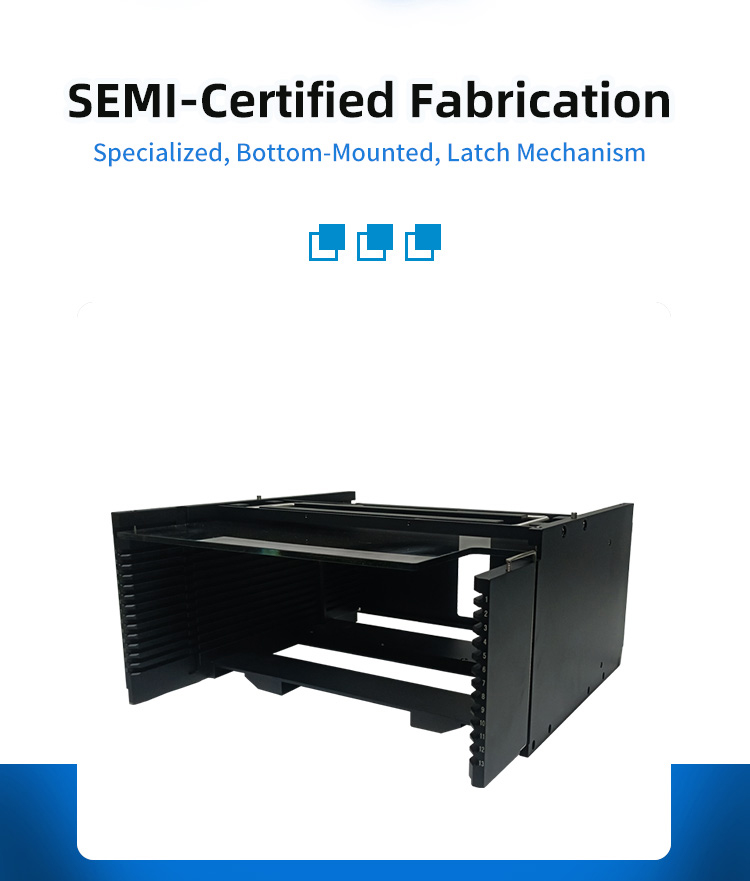

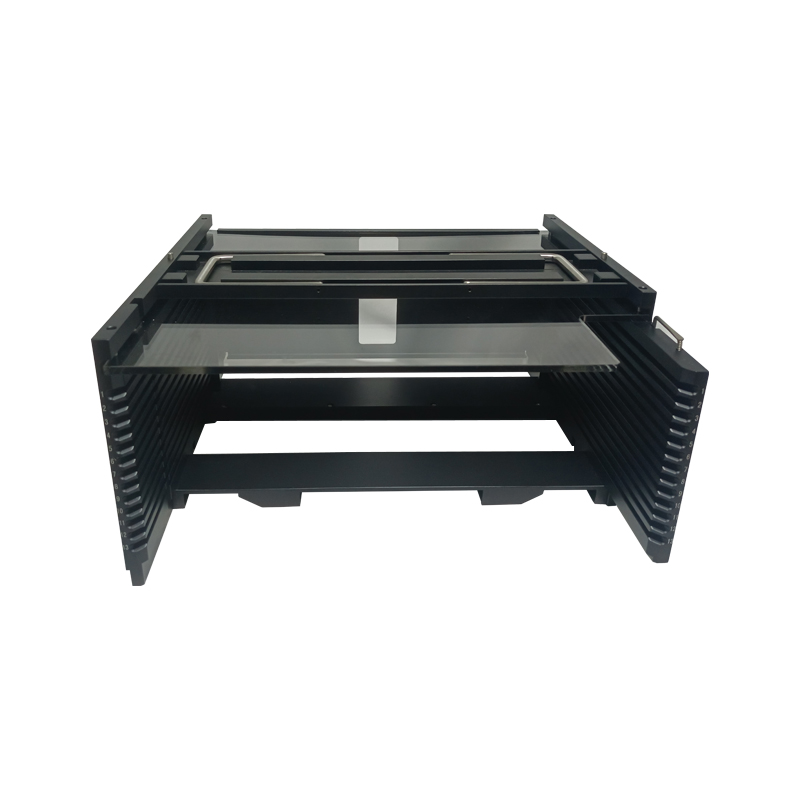

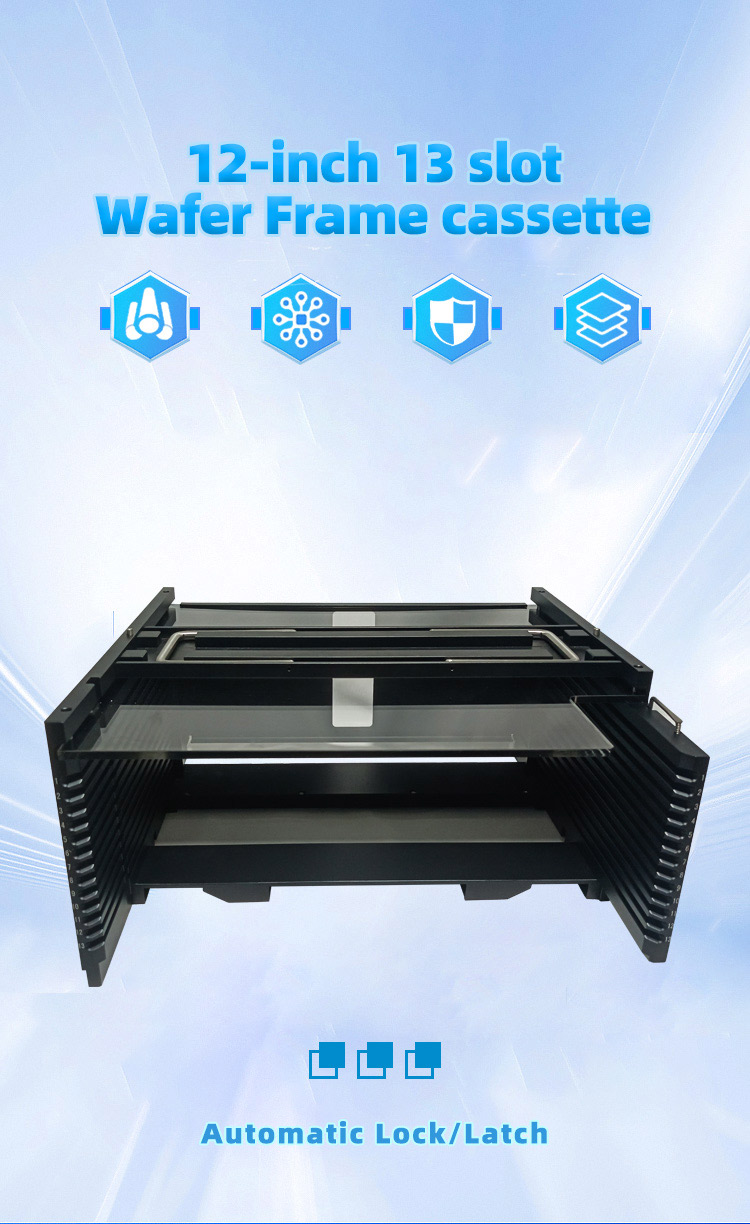

12Inch 13 Slot 24A41 Wafer Frame Cassette (10mm Slot Pitch)
Product Name: 12Inch 13 Slot 24A41 Wafer Frame Cassette (10mm Slot Pitch)
Number: DSF24A41-000-R10

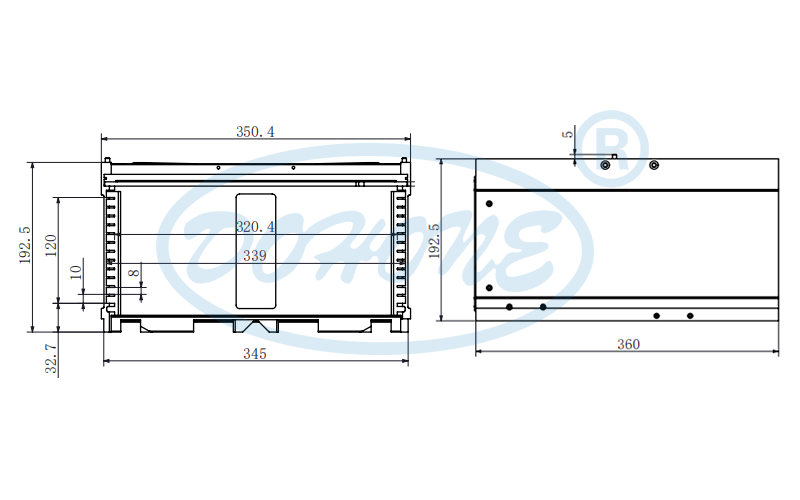

Size: 350.4(L)×360(W)×192.5(H)mm

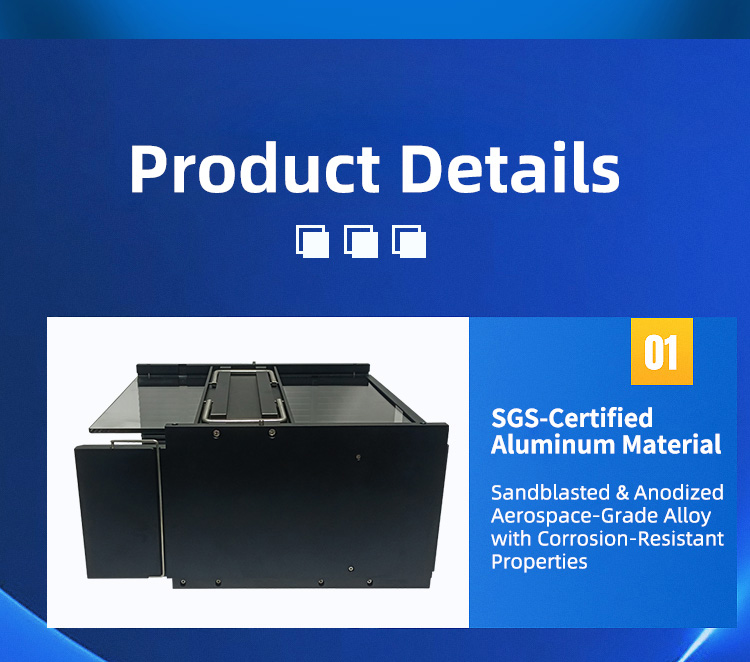

Material: Aluminum alloy 6063(AL6063)
Number of slots: 13slots
Slot Pitch: 10 mm
Initial slot position: 32.7 mm

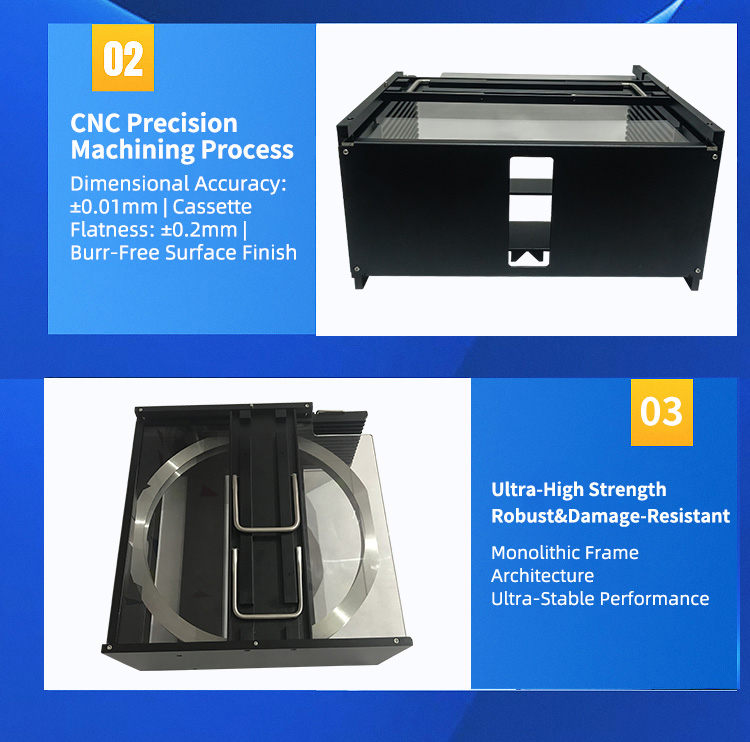

Product Process: CNC precision machining
Surface treatment: Anodization
Product Description
In the semiconductor and related precision manufacturing fields, minor variations in wafer frame dimensions often become "hidden obstacles" in the production process. Standard-sized Wafer Frame Cassettes frequently fail to precisely match customer wafer frames, leading to issues such as low loading efficiency and susceptibility to wafer damage. Addressing this pain point, the DOHONE 12-Inch Wafer Frame Cassette offers "tailor-made" custom services—key dimensions such as the product's inner and outer diameters, slot depth, and edge curvature are precisely adjusted based on the actual dimensions of the customer’s wafer frame. This ensures a "zero-gap" fit between the customized Cassette and the wafer ring, preventing production losses caused by dimensional deviations at the source.
For DOHONE, such customized dimensional adjustments are not complex engineering tasks but routine services based on a mature technical system. Our core advantages stem from two key pillars: First, over 20 years of industry expertise have endowed our team with a deep understanding of the material properties and machining precision requirements of Wafer Frame Cassettes, enabling us to quickly identify key control points for dimensional adjustments. Second, the accumulation of experience from 1,000+ customization cases covers a full range of needs—from minor adjustments to standard dimensions to special irregular structures—forming a standardized customization process. From dimensional parameter confirmation and design drawings to CNC precision machining and dimensional inspection, each step is supported by proven technical solutions, ensuring that products maintain extremely high precision and stability even after dimensional modifications.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
