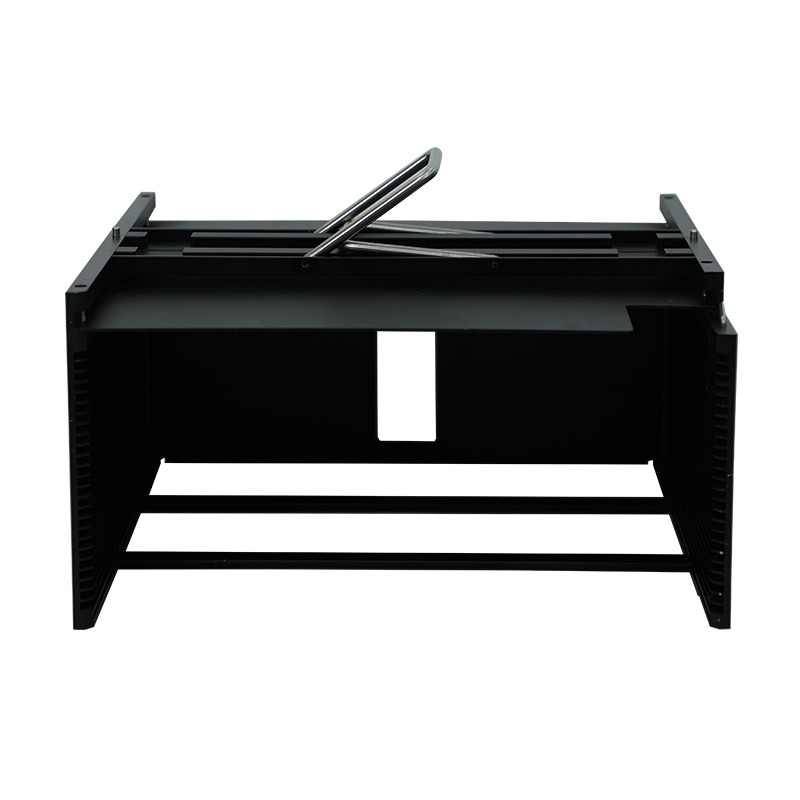

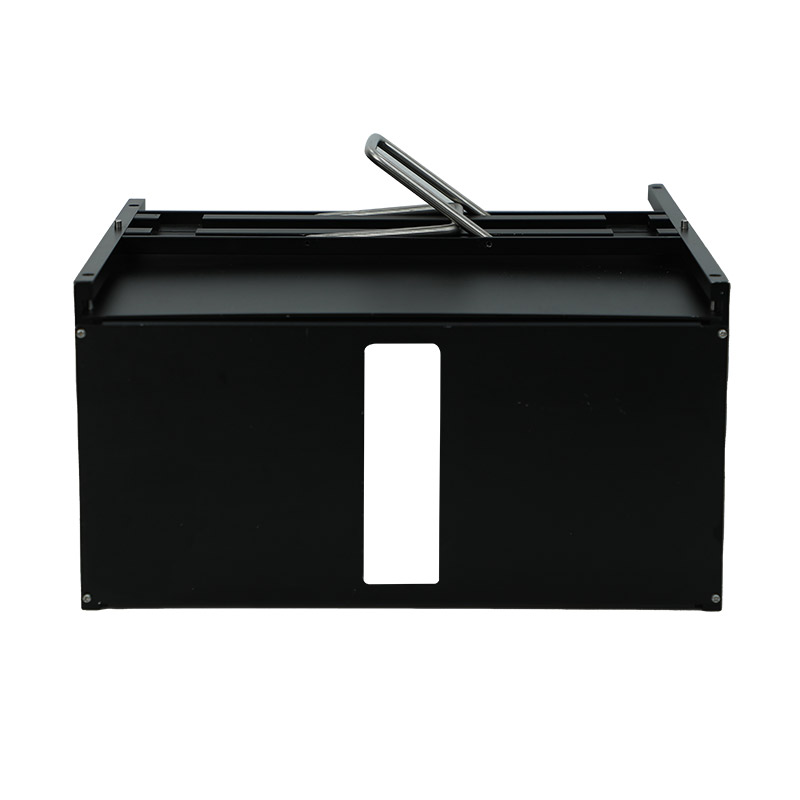

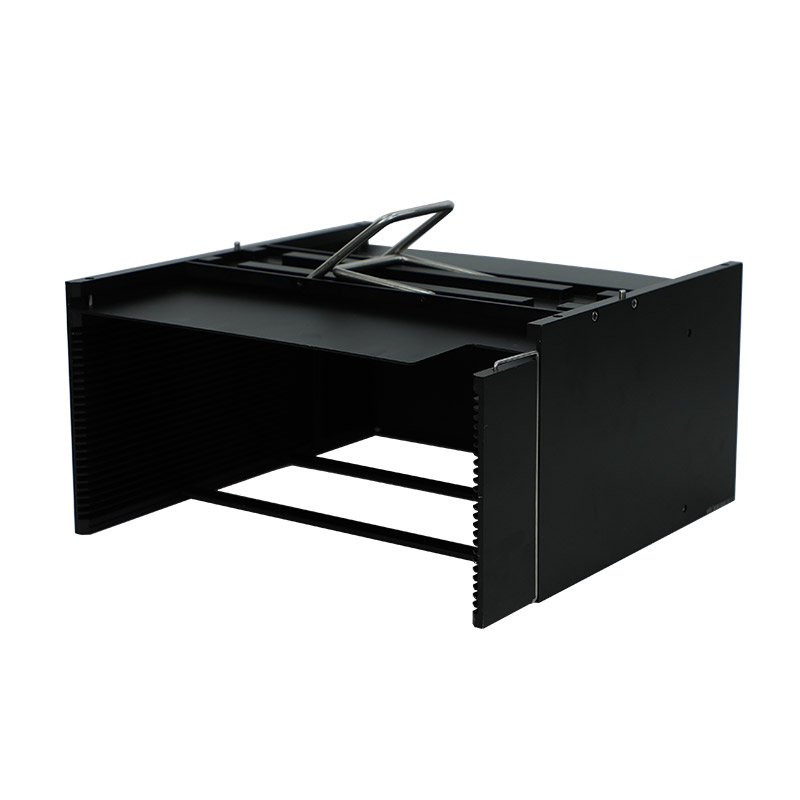

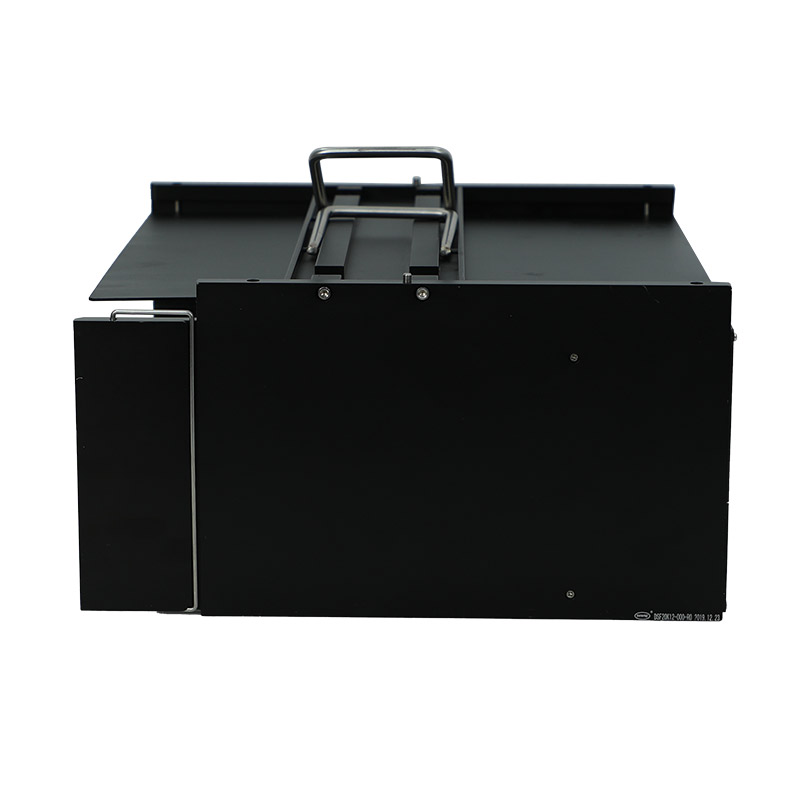

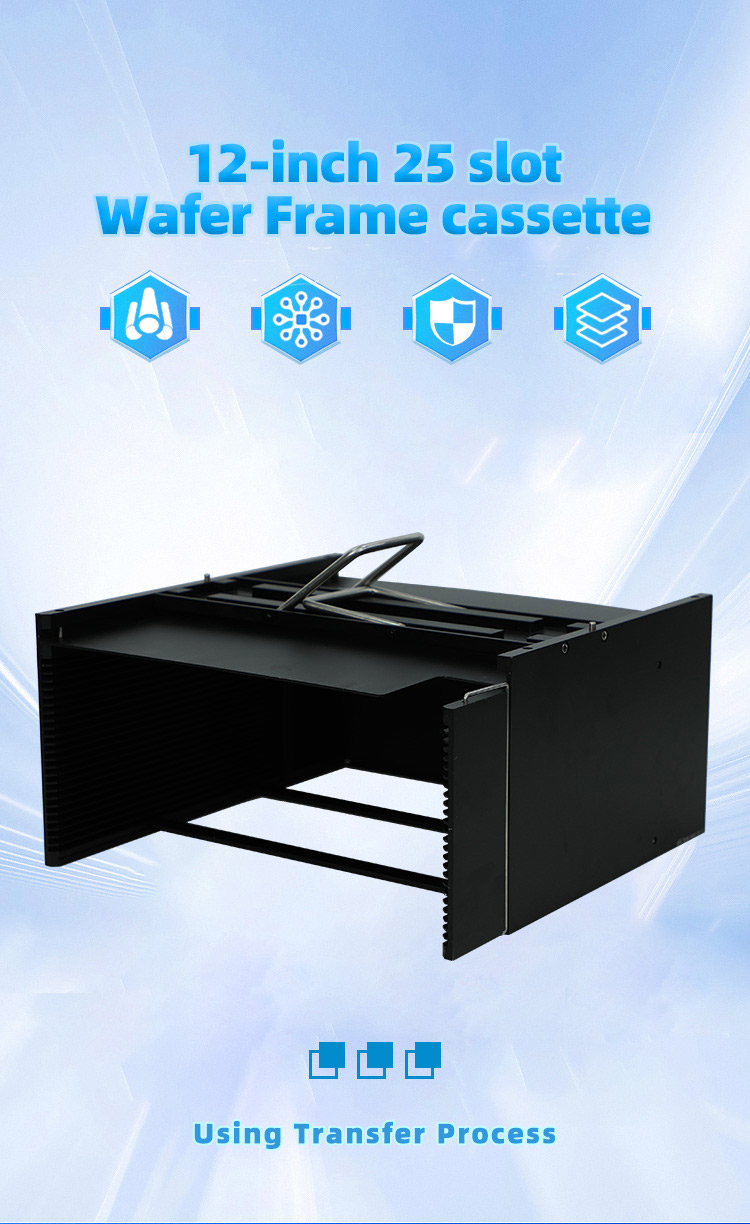

12Inch 25 Slot K12-R0 Wafer Frame Cassette (6.3mm Slot Pitch)
Product Name: 12Inch 25 Slot K12-R0 Wafer Frame Cassette (6.3mm Slot Pitch)
Number: DSF20K12-000-R0

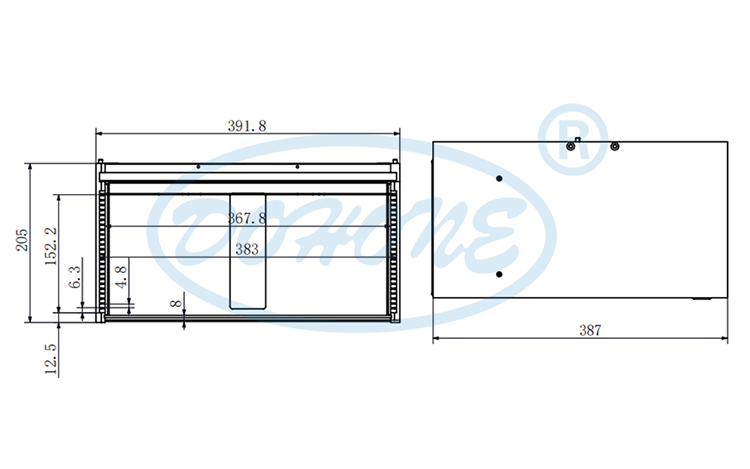

Size:391.8(L)×387(W)×205(H)mm

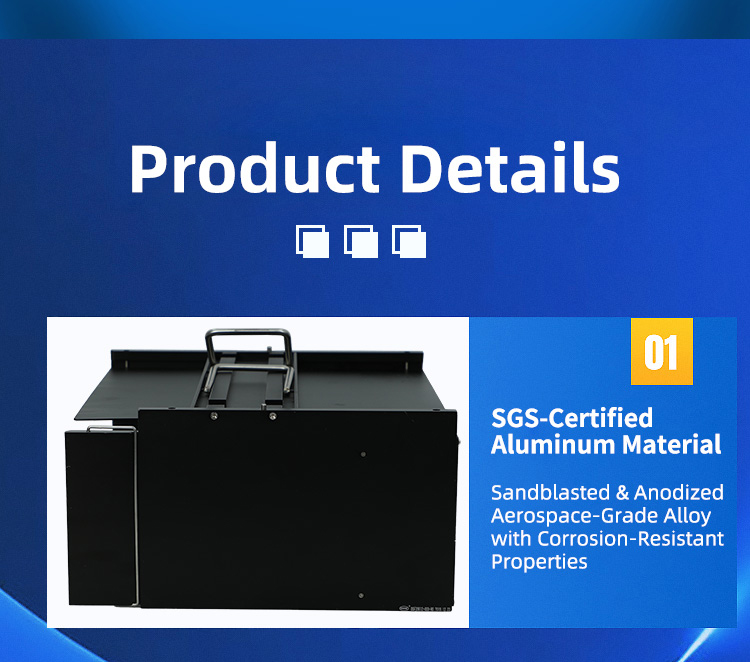

Material: Aluminum alloy 6063(AL6063)
Number of slots: 25slots
Slot Pitch: 6.3 mm
Initial slot position: 12.5 mm
Product Process: CNC precision machining
Surface treatment: Anodization
Product Description
The DOHONE 12-Inch 25-Slot Wafer Frame Cassette is a core carrier specifically tailored for high-precision semiconductor cutting equipment, deeply aligning with the semiconductor manufacturing industry's essential demands for refined and efficient production.
To meet the high-precision requirements of semiconductor cutting processes, this wafer frame cassette achieves critical breakthroughs in structural design. Its slot width and slot pitch have been precisely optimized and significantly reduced compared to traditional carriers. This compact design not only accommodates smaller, more highly integrated wafer products but also sets higher standards for the positioning accuracy and operational stability of cutting equipment, thereby driving process upgrades. This ensures the integrity and processing precision of wafers during cutting, meeting the stringent quality requirements of semiconductor chip manufacturing.
In terms of loading efficiency, the product adopts a 25-layer layered design, significantly increasing loading capacity compared to conventional carriers. The increased loading space allows for a greater number of wafers to be transported and processed in a single cycle, effectively reducing the frequency of equipment downtime for material changes and shortening production interval time. This design directly enhances workshop production workflows by minimizing unnecessary process waiting times and increasing output per unit of time. It helps workshops optimize production rhythms and improve overall production efficiency, providing strong support for semiconductor manufacturers in reducing costs and enhancing productivity.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
Custom Services
Founded in 2003, DOHONE specializes in semiconductor chip handling and storage solutions, having delivered 3,000+ customized product solutions to industry clients, all highly favored for their precision. We are confident in our ability to assist you. Simply provide your design specifications or samples, and we will deliver a tailored solution that meets your exact needs.
