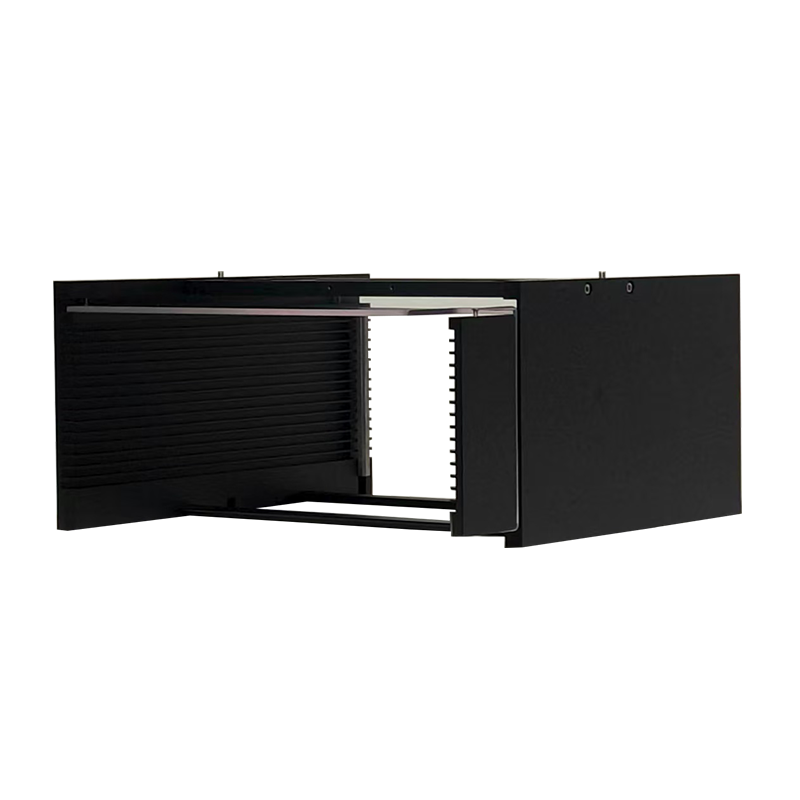

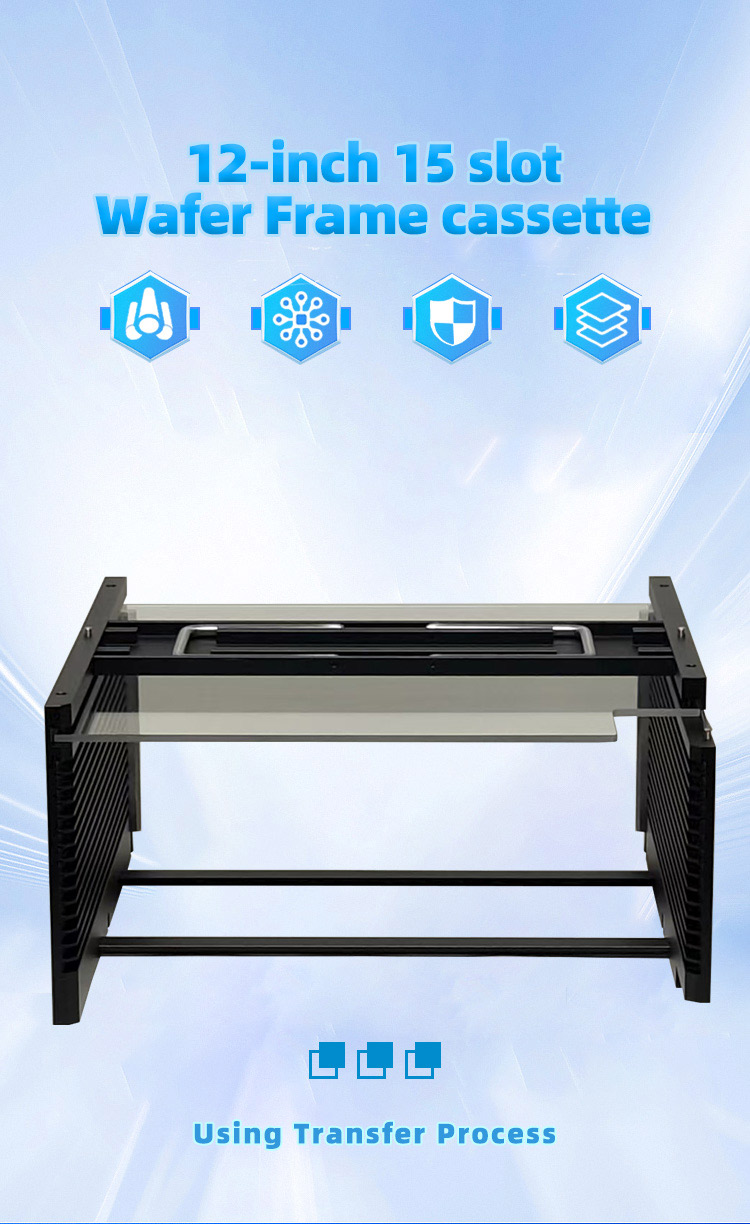

12Inch 15 Slot Q12-R2 Wafer Frame Cassette (8.6mm Slot Pitch)
Product Name: 12Inch 15 Slot Q12-R2 Wafer Frame Cassette (8.6mm Slot Pitch)
Number: DSF20Q12-000-R2

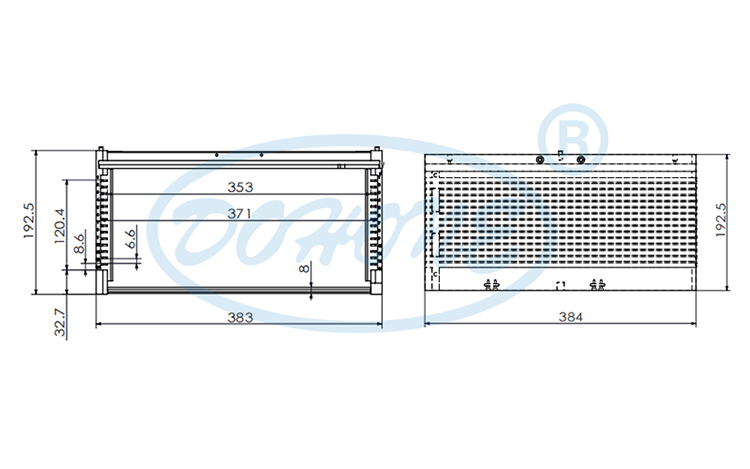

Size: 383(L)×384(W)×192.5(H)mm
Material: Aluminum alloy 6061(AL6061)
Number of slots: 15 slots
Slot Pitch: 8.6 mm
Initial slot position: 32.7 mm
Product Process: CNC precision machining
Surface treatment: Anodization
Product Description

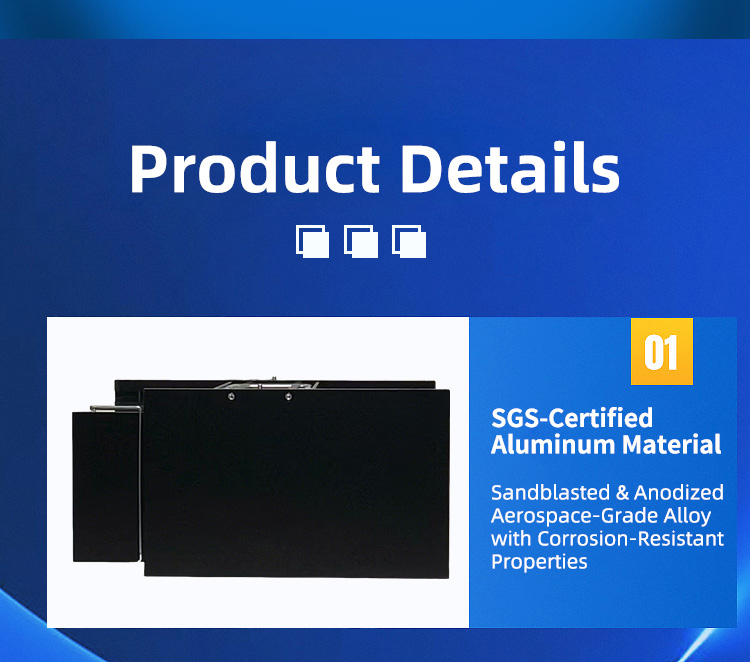

This product is specifically designed for high-precision production scenarios in the semiconductor industry. It utilizes high-quality 6061 aluminum alloy plate as the core base material, leveraging its excellent mechanical strength, corrosion resistance, and superior machining compatibility to establish a solid foundation for the product's stable performance.

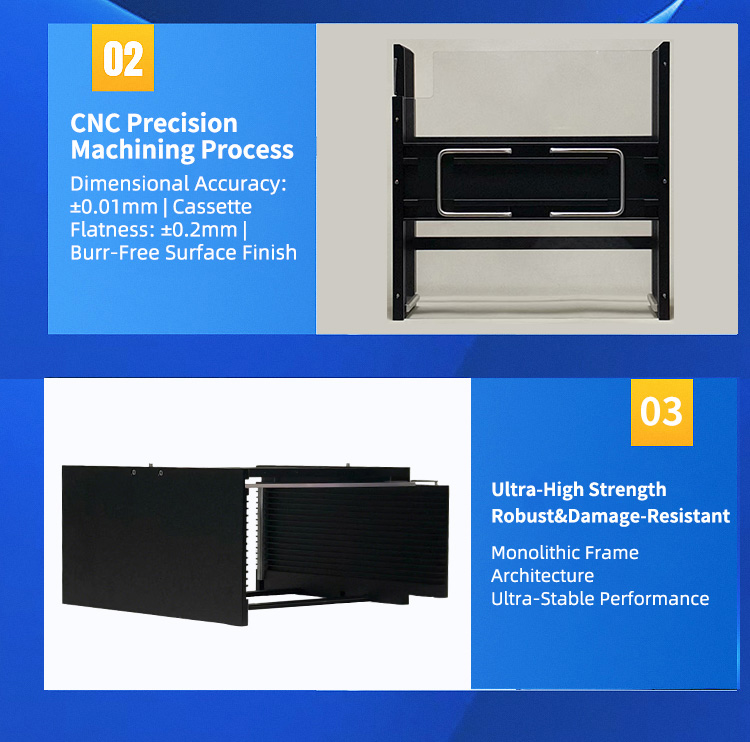

During the manufacturing process, the product undergoes multiple stringent procedures: First, each component is shaped through CNC precision machining technology, with high-precision equipment ensuring tight dimensional tolerances, uniform slot spacing, and accurate aperture dimensions. Subsequently, a professional black oxidation treatment is applied, which not only imparts wear-resistant and scratch-resistant surface properties but also effectively enhances oxidation resistance, preventing moisture and chemical agents in the production environment from corroding the cassette. Finally, a multi-dimensional assembly verification process is conducted, where slot parallelism, overall flatness, and assembly accuracy are individually inspected to ensure that every product meets the rigorous quality standards of the semiconductor industry.
Advantages of Dohone Cassettes:
CNC precision machining, surface polishing and heat treatment, burr-free, smooth surfaces, and high dimensional accuracy. This reduces wafer damage caused by burrs in the cassette slots or poor surface treatment during production. Made from SGS-certified premium aluminum material, the cassettes are wear-resistant and do not deform during use. This minimizes issues such as jamming of the iron ring and frequent machine alarms caused by cassette wear or deformation. Diverse size designs meet the technical requirements of different customer equipment. The unique slot chamfer design ensures 100% prevention of slot contact with the wafer.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
