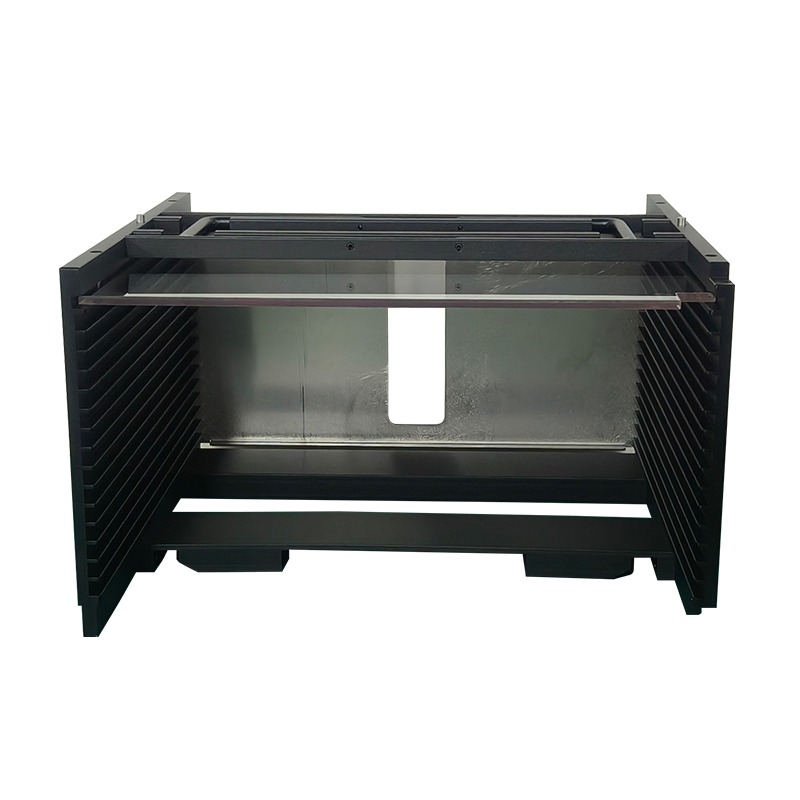

12 Inch 15 Slot A16-R0 Wafer Frame Cassette (10 mm Slot Pitch)
Product Name: 12 Inch 15 Slot A16-R0 Wafer Frame Cassette (10 mm Slot Pitch)
Number: DSF24A16-000-R0

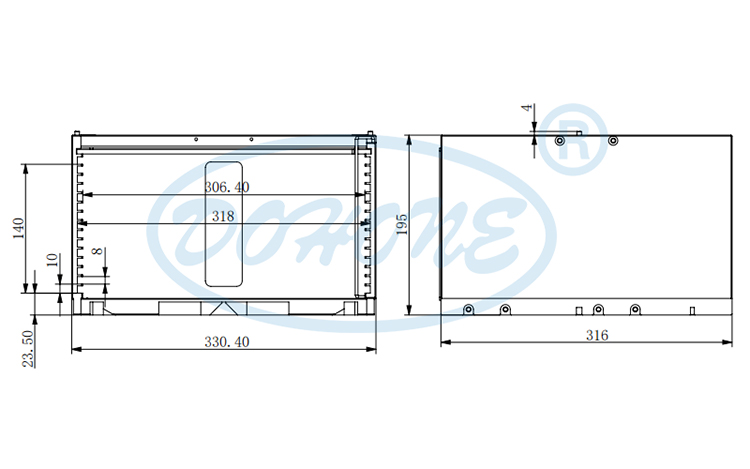

Size: 330.4(L)×316(W)×195(H) mm
Material: Aluminum alloy 6061(AL6061)
Number of slots: 15 slots
Slot Pitch: 10 mm
Initial slot position: 23.5 mm
Product Process: CNC precision machining
Surface treatment: Anodization
Product Description
This 12 Inch 15 Slot Wafer Frame Cassette is specifically designed for high-precision production scenarios in the semiconductor industry. It utilizes high-quality 6061 aluminum alloy plate as the core base material, leveraging its excellent mechanical strength, corrosion resistance, and superior machinability to establish a solid foundation for stable product performance.

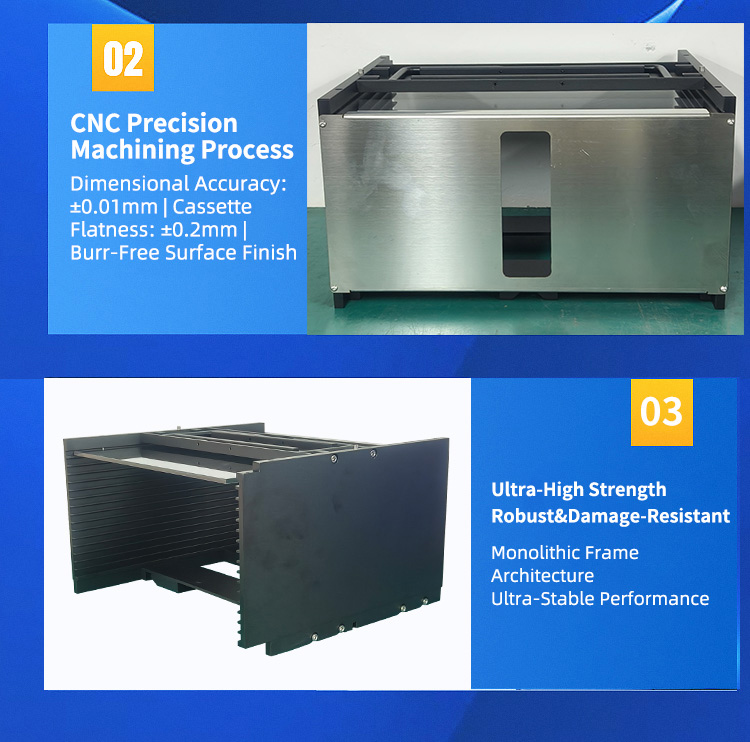

During the manufacturing process, the product undergoes multiple stringent procedures: First, each component is shaped through CNC precision machining technology, with high-precision equipment controlling dimensional tolerances throughout to ensure uniform slot spacing and accurate aperture. Subsequently, a professional black oxidation treatment is applied, which not only imparts wear-resistant and scratch-resistant surface characteristics but also effectively enhances oxidation resistance, preventing moisture and chemical agents in the production environment from corroding the cassette. Finally, through a multi-dimensional assembly verification process, the parallelism of the slots, overall flatness, and assembly accuracy are individually inspected to ensure every product meets the rigorous quality standards of the semiconductor industry.
The product boasts prominent core advantages, with overall precision and flatness meeting the core technical requirements of semiconductor cutting equipment. It accurately accommodates the storage and transportation needs of wafer frames, effectively preventing wafer damage caused by insufficient product precision during the manufacturing process. Additionally, thanks to the high-quality base material and mature manufacturing techniques, the product exhibits exceptional stability and durability. Under normal usage conditions, its service life can exceed three years, helping enterprises reduce equipment replacement frequency and operational costs while enhancing production efficiency and product yield.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
