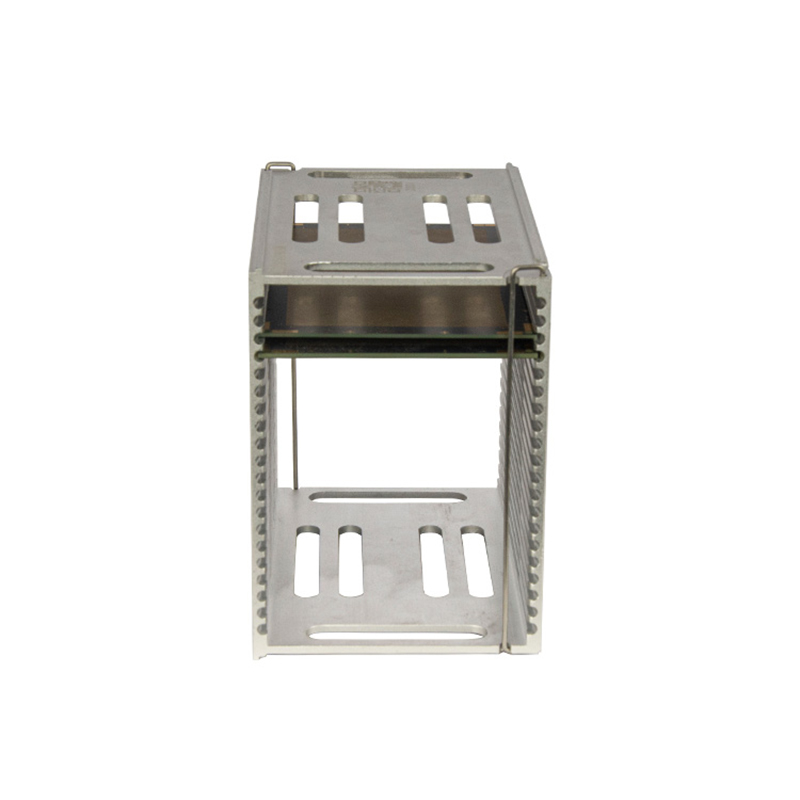

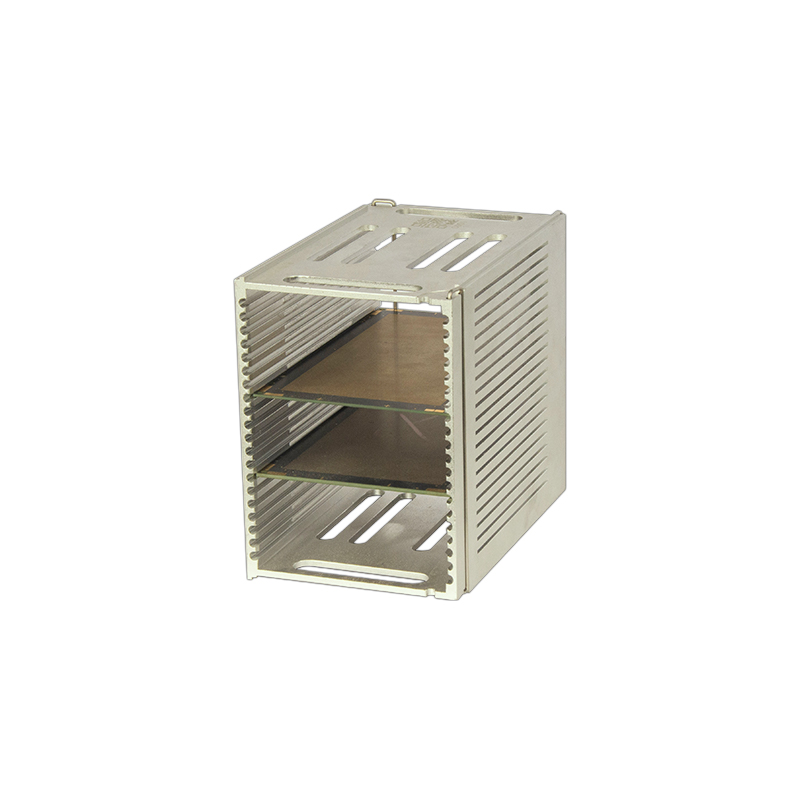

20 Slot Lead Frame Magazine With 104mm Inner Width

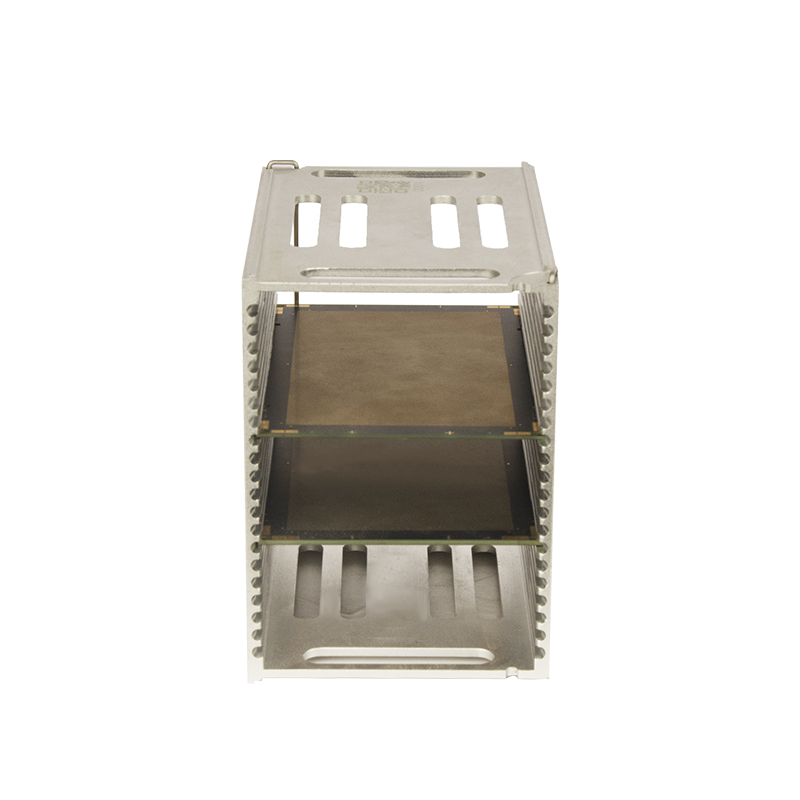

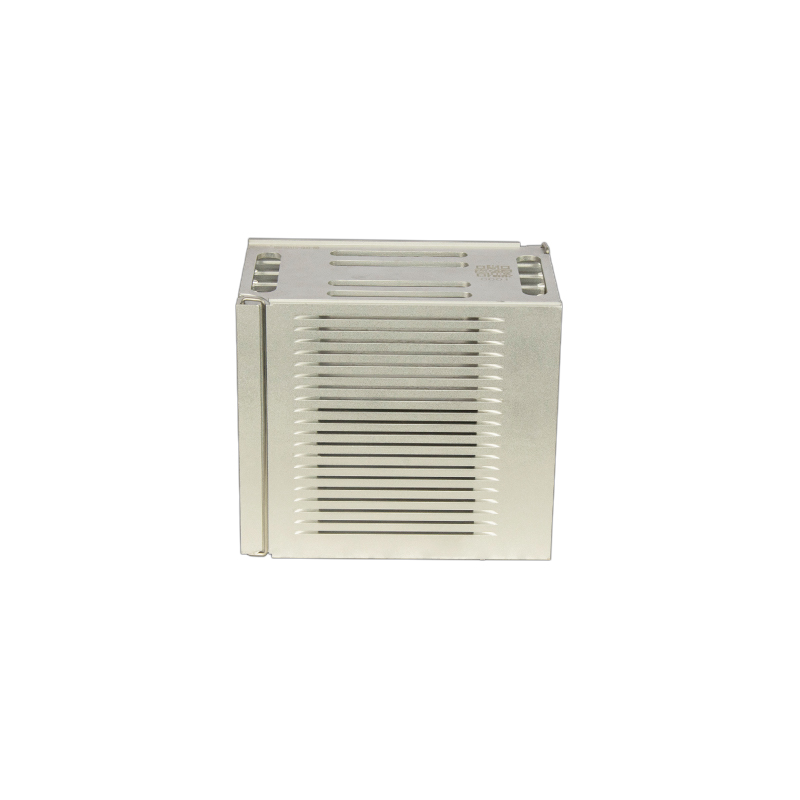

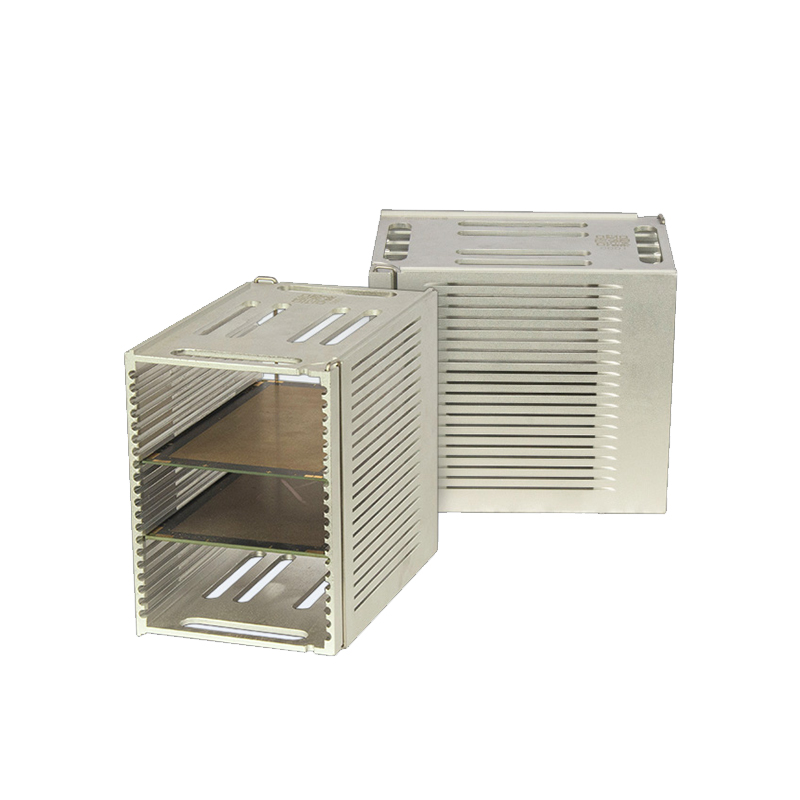

Product Name: 20 Slot Lead Frame Magazine with 104mm Inner Width
Number: WBF40A15-000-R0

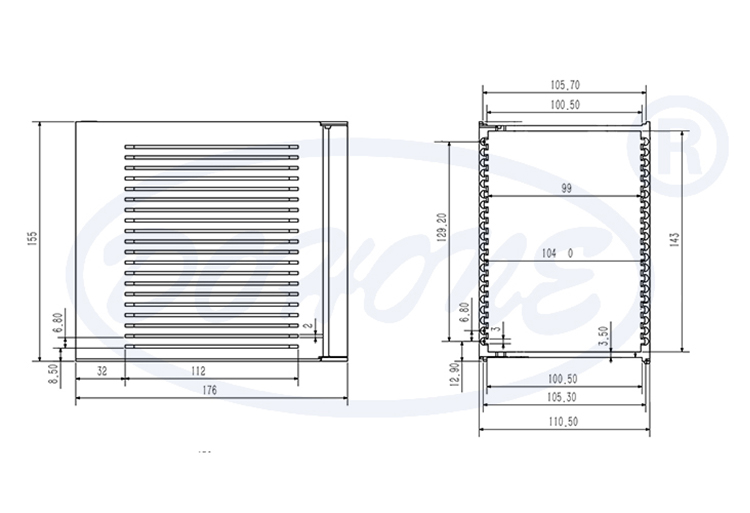

Size: 176(L)×110.5(W)×155(H)mm
Material: Aluminum alloy 6063(AL6063)
Number of slots: 20 slots
Slot Pitch: 6.8 mm
Initial slot position: 12.9 mm
Product Process: CNC precision machining
Surface treatment: Hard Anodization/Anodization
Structure Type: Integrated (One-Piece)
Product Description
In the semiconductor manufacturing industry, Donghongxin's meticulously developed 20-Slot Lead Frame Magazine demonstrates exceptional design ingenuity and practical performance. This product features a groundbreaking four-sided open-frame design, significantly enhancing convenience during the intermediate-temperature baking process in chip manufacturing.
In chip production, intermediate-temperature baking is a critical step. Traditional packaging tools often suffer from uneven heat dissipation and poor air circulation, which can lead to inconsistent heating and compromise chip quality. Donghongxin’s 20-Slot Lead Frame Magazine, with its innovative four-sided open structure, effectively resolves these challenges. When chips are placed inside for baking, heat penetrates uniformly and efficiently from all directions, ensuring precise and consistent heating across every minute detail. This design effectively eliminates internal stress within the chips, enhancing their reliability and performance.
Custom Services
Founded in 2003, DOHONE specializes in semiconductor chip handling and storage solutions, having delivered 3,000+ customized product solutions to industry clients, all highly favored for their precision. We are confident in our ability to assist you. Simply provide your design specifications or samples, and we will deliver a tailored solution that meets your exact needs.
Company Profile
Shenzhen Donghongxin Static Control Equipment Co., Ltd. is located in Wanfeng Dayangtian Industrial Zone, Xinqiao Street, Shajing, Bao’an District, Shenzhen, Guangdong Province. Our core products include wafer cassettes, wafer rings, expansion ring carriers, and packaging magazines. Established in 2003, the company has gained significant market share domestically and internationally over two decades, with products widely recognized and trusted by global semiconductor enterprises.
To meet the high-quality demands of semiconductor clients, DOHONE implements strict quality controls across production processes. Our products are manufactured to national and international standards and hold ISO9001 Certification and ROHS Compliance Certification. Guided by the principles of “Customer First, Safety, Integrity, Altruism, Focus, Expertise, Service, Innovation, Sustainability, Diligence, and Win-Win Collaboration,” DOHONE was awarded the title of National High-Tech Enterprise from 2020 to 2023. These accolades reflect governmental recognition of our technological innovation and product sophistication. To date, we hold over 10 national patents and actively collaborate with industry partners to develop cutting-edge solutions, advancing global semiconductor innovation.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
