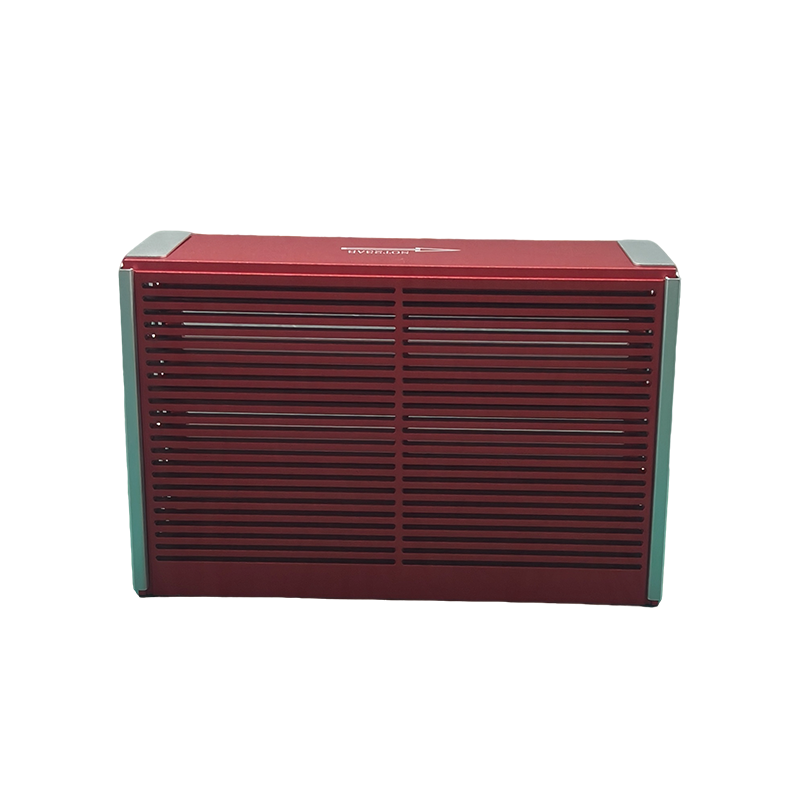

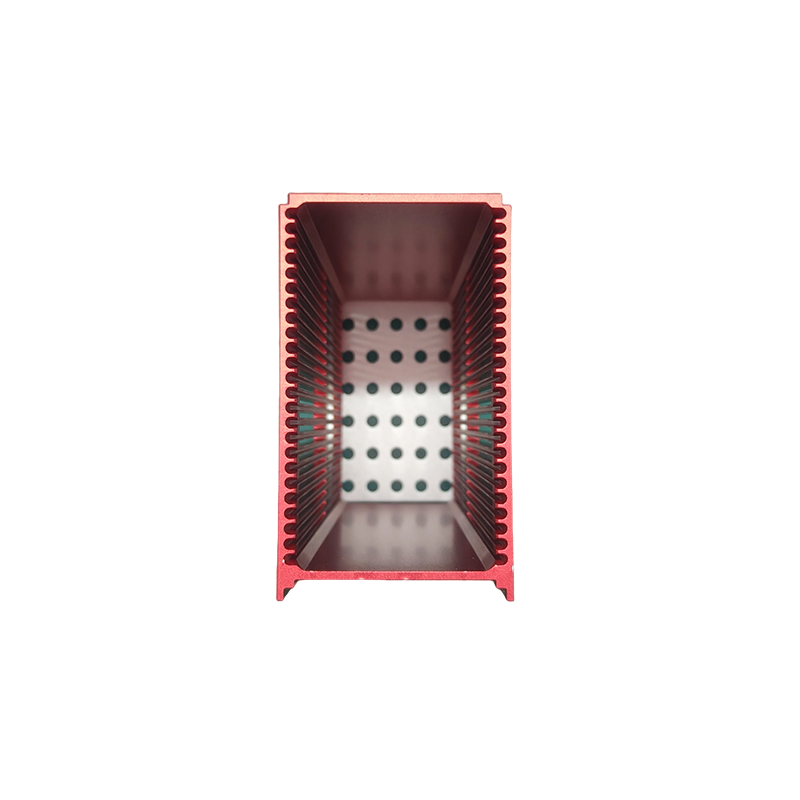

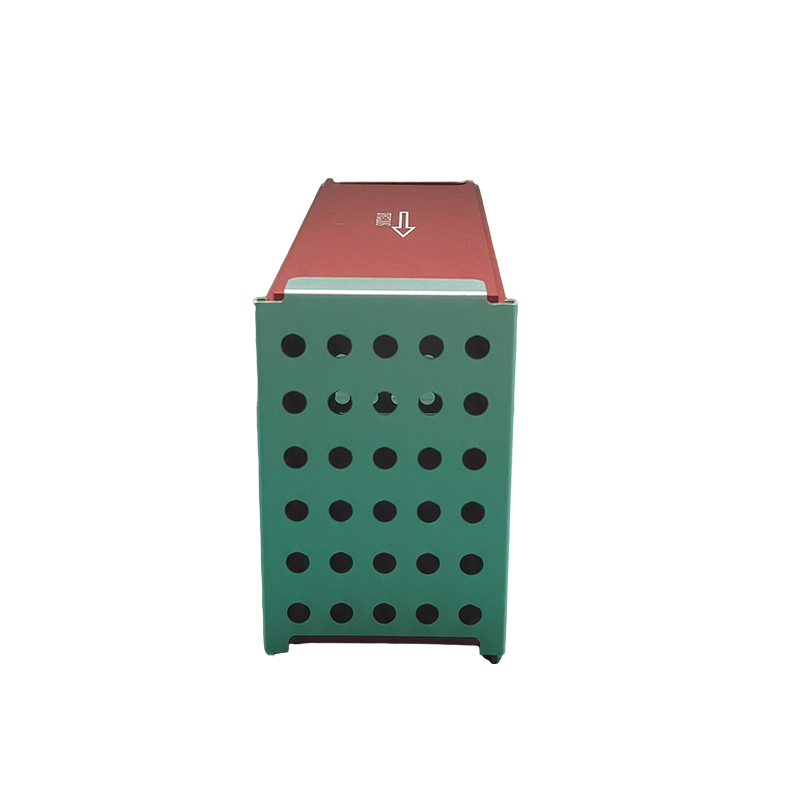

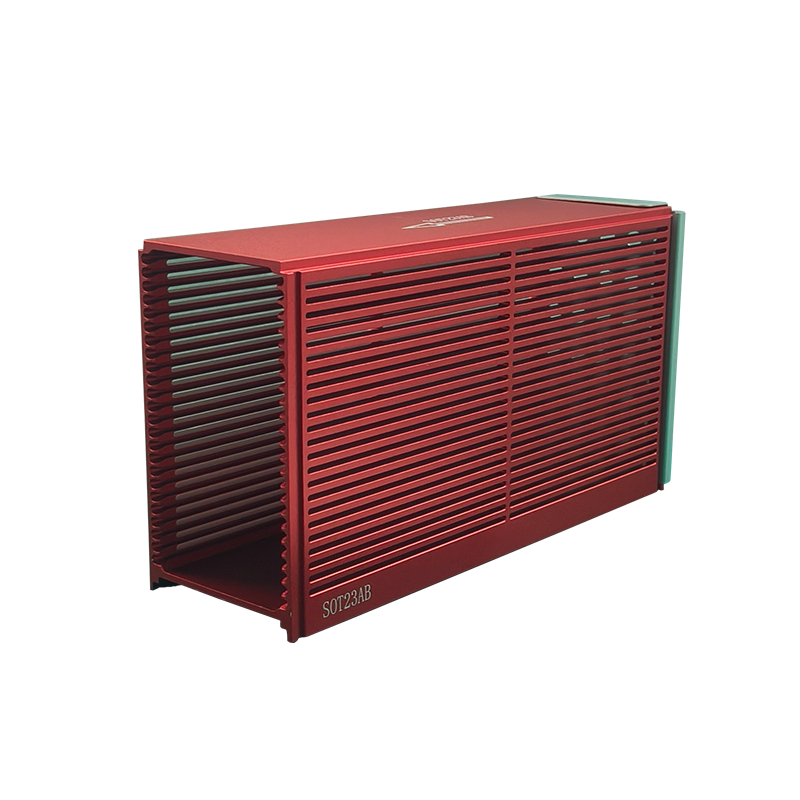

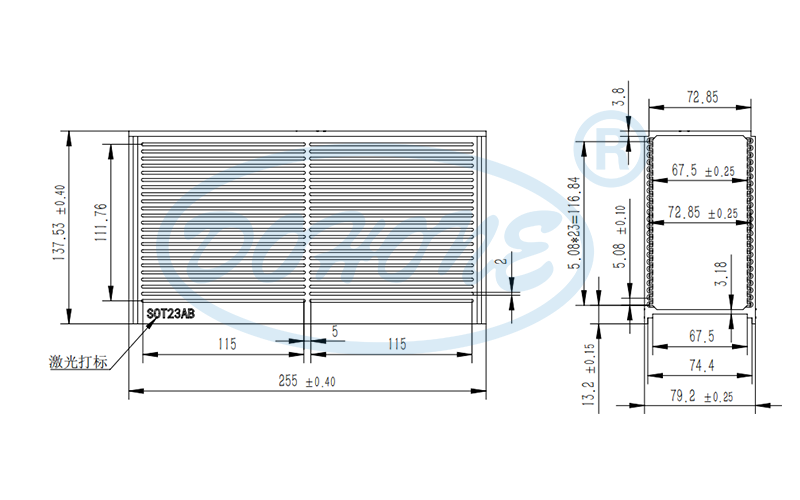

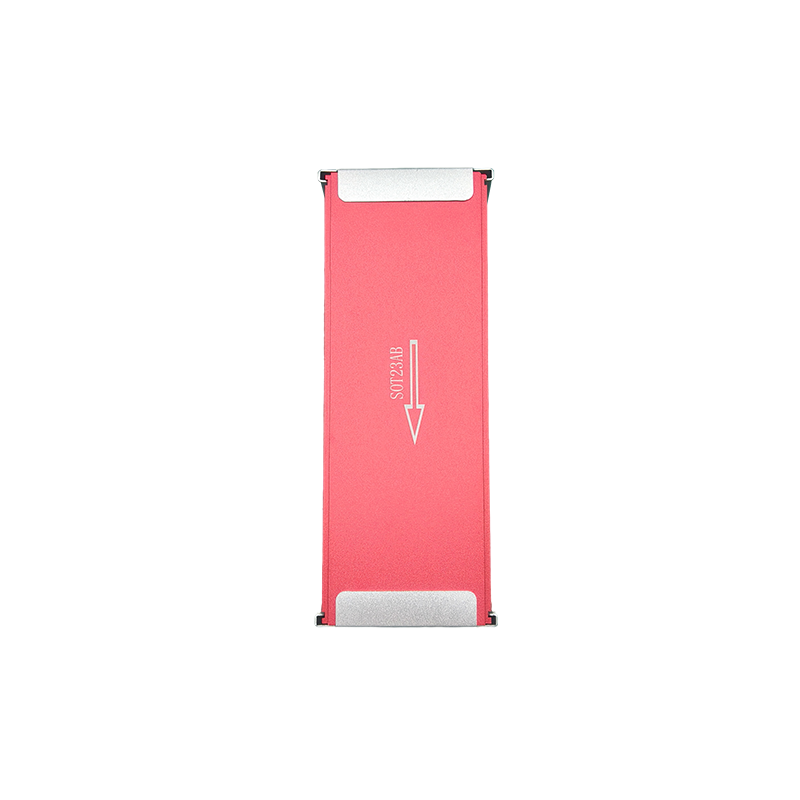

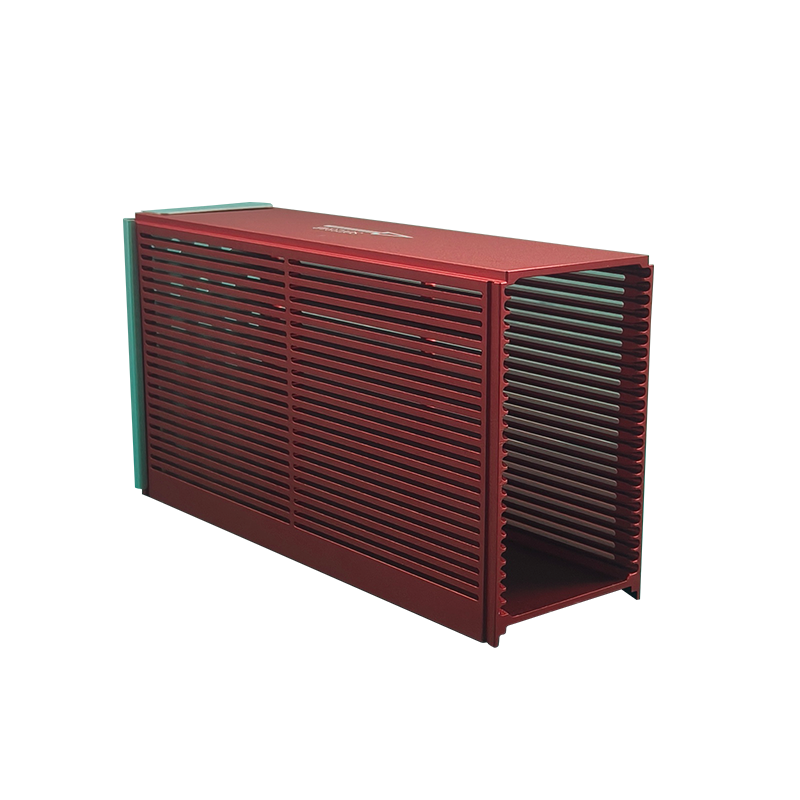

DOHONE SOT23 package magazine is crafted from selected 6063T5 aluminum profile using an integrated extrusion molding process, delivering greater overall rigidity, reducing tolerance deviations caused by splicing gaps, and ensuring a stable structure that resists deformation. The product inlet is processed with micron-level precision CNC machining, resulting in smooth, burr-free slot walls, complemented by red standard anodized treatment to enhance surface wear resistance and corrosion resistance, while also facilitating visual distinction and management on the production line. Specifically designed for optimization of chip bonding processes, this magazine precisely adapts to automated equipment for storing and retrieving SOT lead frames. With strict control over overall flatness and dimensional accuracy, the frame loading and unloading are smooth and stable, effectively preventing abnormal stoppages such as jamming or machine collisions, reducing the risk of damage to lead frames and chips from impact, ensuring continuous operation of the assembly and testing line, and fully unleashing the production efficiency of chip packaging.

Q&A

Are you a factory or a trading company?

We are a factory.

How many staffs do you have in your factory?

Our company has nearly 70 staffs.

How many years have your company made this kind of equipment?

Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.

What shall we do if we do not have drawings?

Please send your sample to our factory, then we can copy or provide you with better solutions, please send us pictures or drafts with dimensions(Thickness, Length, Height, and Width), CAD or 3D file will be made for you if you placed the order.

What kinds of information do you need for a quote?

In order to quote for you earlier, please provide us with the following information together with your inquiry.

1.Detailed drawings(STEP,CAD,SOLID Works,DXF,PDF)

2.Material requirement(AL6061,AL7075,AL6063)

3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)

4.Quantity(per order/per month/annual)

5. Any special demands or requirements, such as packing, delivery, labels, etc.

6.when do you expect to need the product?

What is your MOQ?

For custom products, the minimum order quantity (MOQ) can only be determined after confirming the product requirements.
