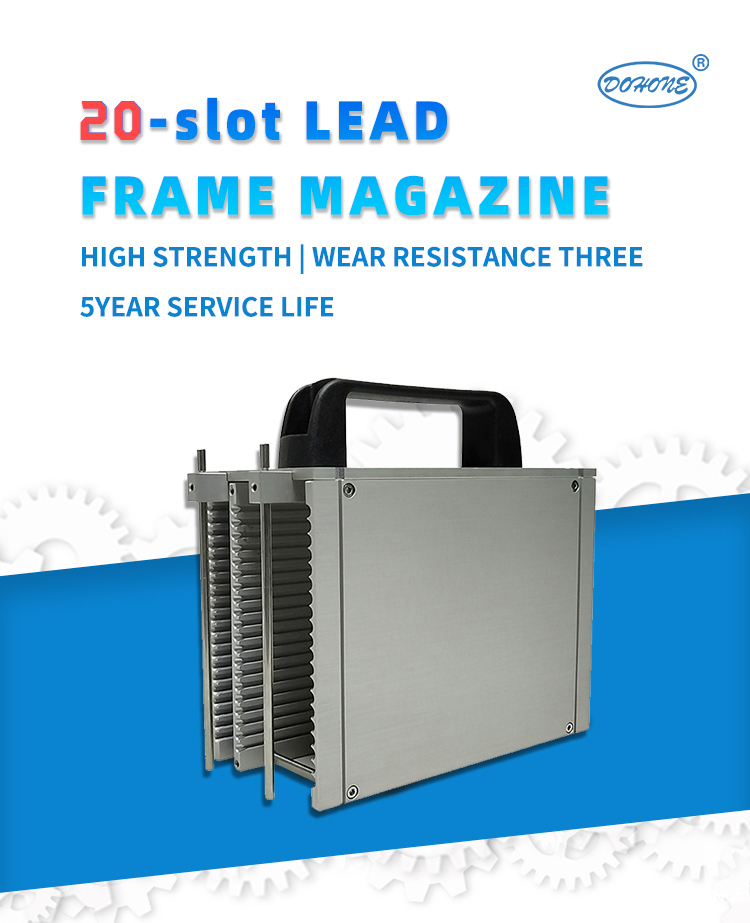

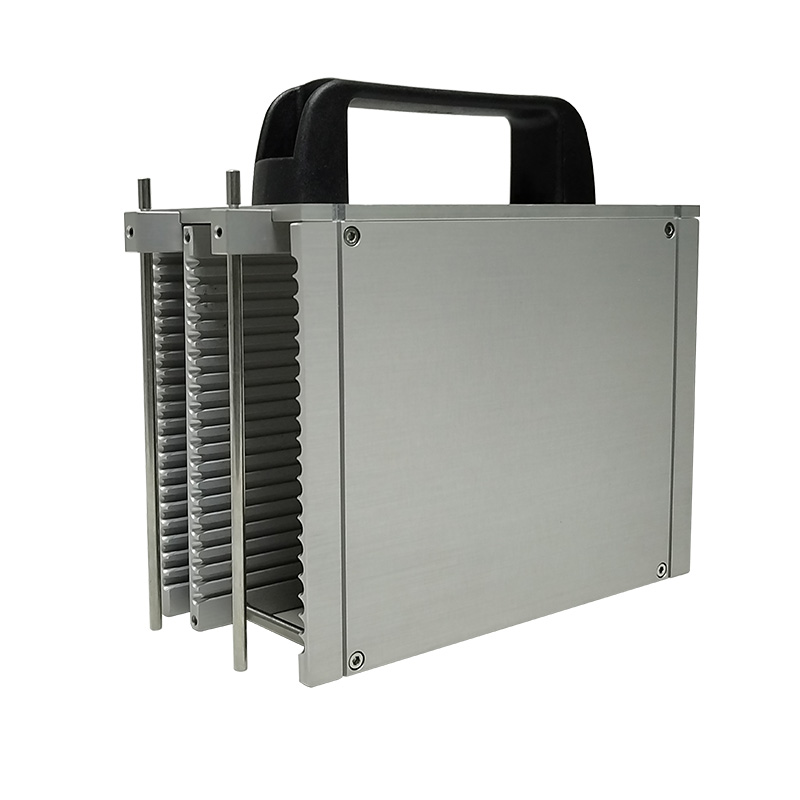

20 Slot Lead Frame Magazine with 81.6mm Inner Width
Product Name: 20 Slot Lead Frame Magazine with 81.6mm Inner Width
Number: WBF40D37-000-R0

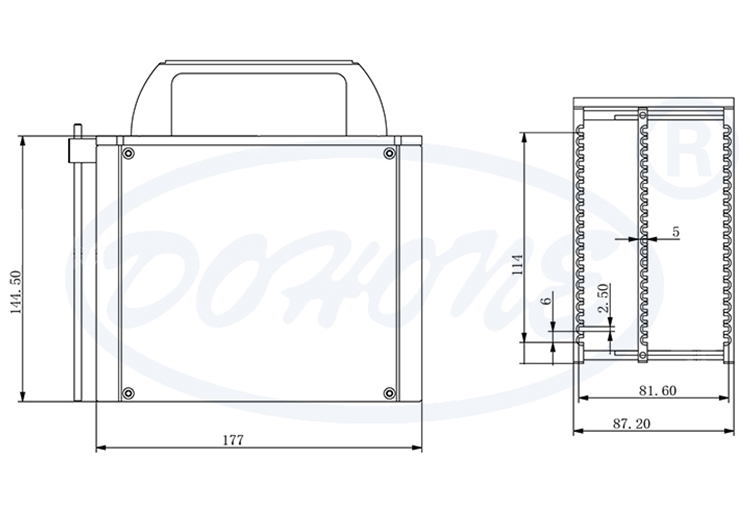

Size: 117(L)×87.2(W)×114.5(H)mm
Material: Aluminum alloy 6061(AL6061)
Number of slots: 20 slots
Slot Pitch: 6 mm
Initial slot position: 11.5 mm
Product Process: CNC precision machining
Surface treatment: Anodization

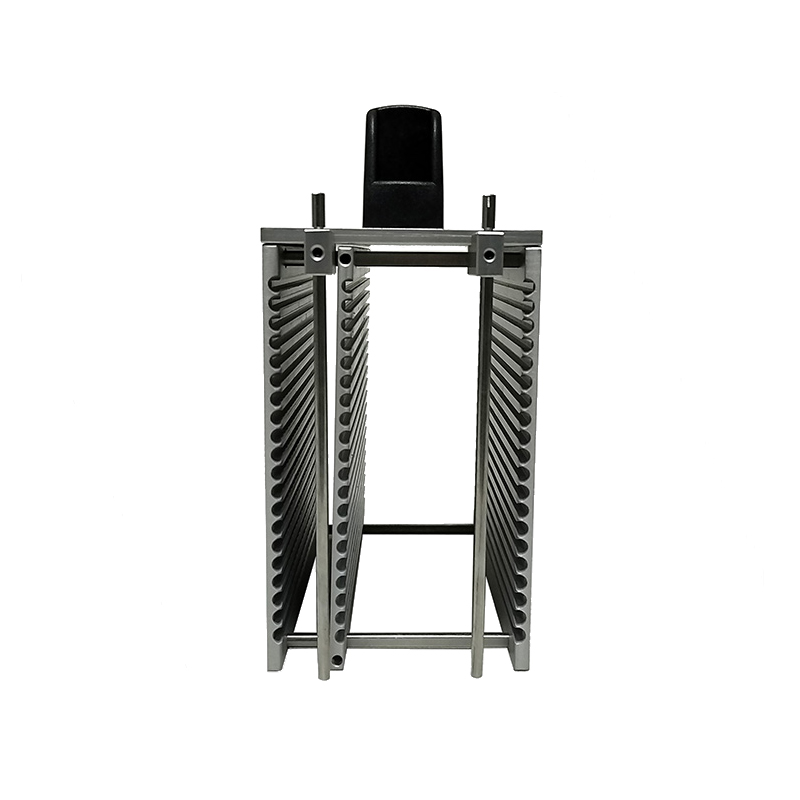

Structure Type: Adjustable
Product Description
Dohone's Lead Frame Magazine is precision-engineered to ensure perfect compatibility with production equipment, eliminating machine errors and magazine wear. Designed for wire bonders (KS/ASM/EAGLE), molding machines, and test handlers, it provides reliable storage and handling for lead frames throughout the packaging process.
Custom Services
Founded in 2003, DOHONE specializes in semiconductor chip handling and storage solutions, having delivered 3,000+ customized product solutions to industry clients, all highly favored for their precision. We are confident in our ability to assist you. Simply provide your design specifications or samples, and we will deliver a tailored solution that meets your exact needs.
Company Profile
Shenzhen Donghongxin Static Control Equipment Co., Ltd. is located in Wanfeng Dayangtian Industrial Zone, Xinqiao Street, Shajing, Bao’an District, Shenzhen, Guangdong Province. Our core products include wafer cassettes, wafer rings, expansion ring carriers, and packaging magazines. Established in 2003, the company has gained significant market share domestically and internationally over two decades, with products widely recognized and trusted by global semiconductor enterprises.
To meet the high-quality demands of semiconductor clients, DOHONE implements strict quality controls across production processes. Our products are manufactured to national and international standards and hold ISO9001 Certification and ROHS Compliance Certification. Guided by the principles of “Customer First, Safety, Integrity, Altruism, Focus, Expertise, Service, Innovation, Sustainability, Diligence, and Win-Win Collaboration,” DOHONE was awarded the title of National High-Tech Enterprise from 2020 to 2023. These accolades reflect governmental recognition of our technological innovation and product sophistication. To date, we hold over 10 national patents and actively collaborate with industry partners to develop cutting-edge solutions, advancing global semiconductor innovation.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What shall we do if we do not have drawings?
Please send your sample to our factory, then we can copy or provide you with better solutions, please send us pictures or drafts with dimensions(Thickness, Length, Height, and Width), CAD or 3D file will be made for you if you placed the order.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Detailed drawings(STEP,CAD,SOLID Works,DXF,PDF)
2.Material requirement(AL6061,AL7075,AL6063)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
For custom products, the minimum order quantity (MOQ) can only be determined after confirming the product requirements.
