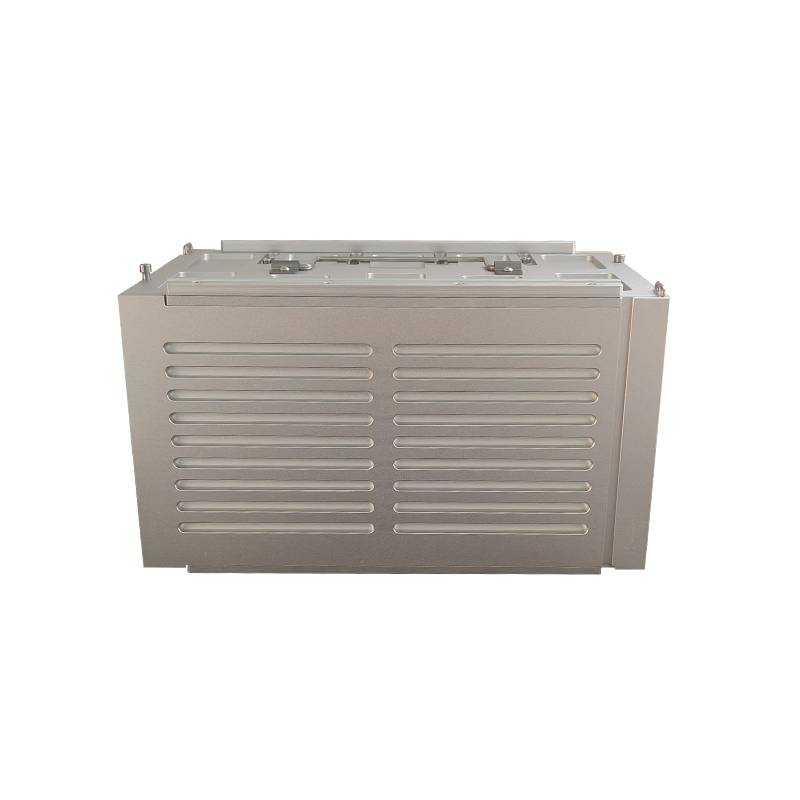

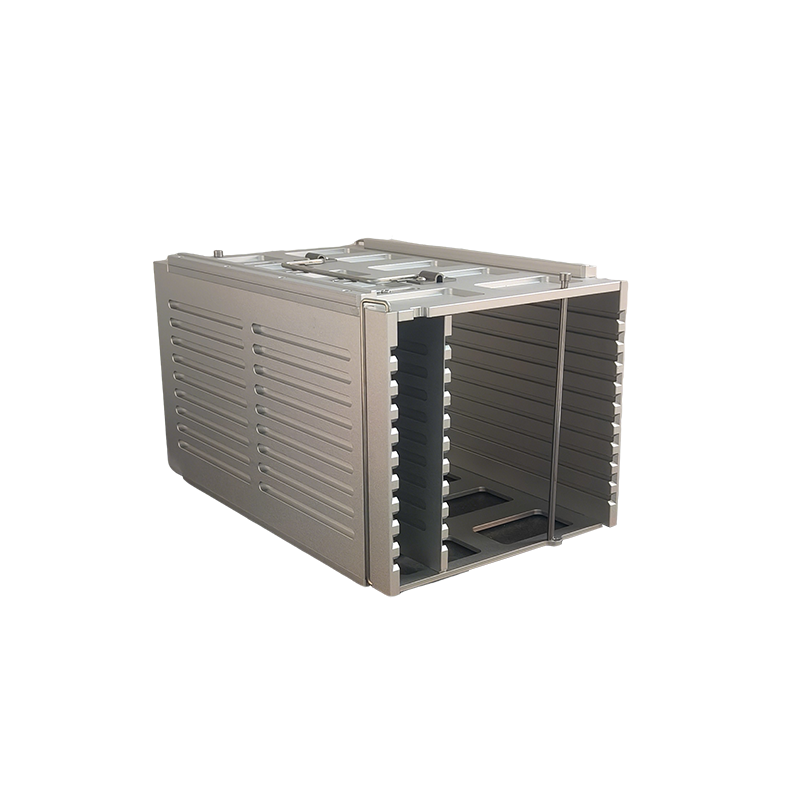

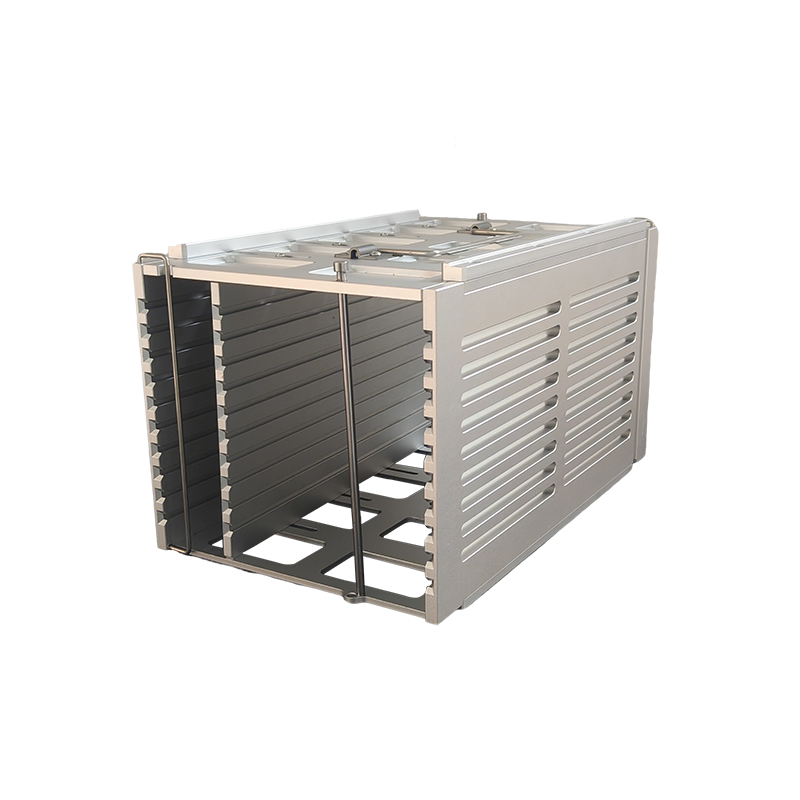

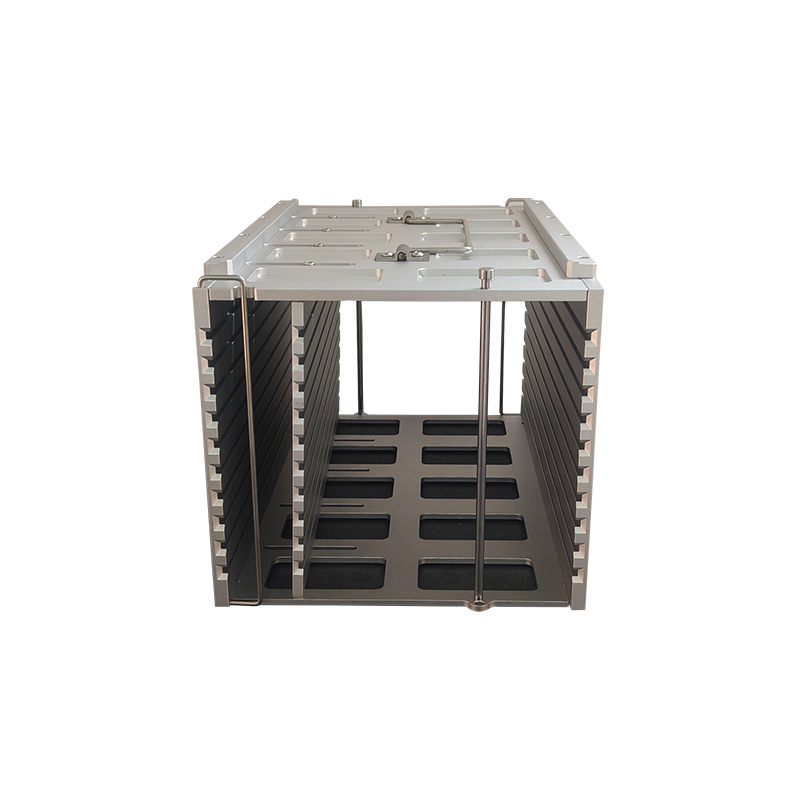

10 Slot Lead Frame Magazine with 192mm Inner Width
Product Name:10 Slot Lead Frame Magazine with 192mm Inner Width
Number:WBF44D10-000-R0

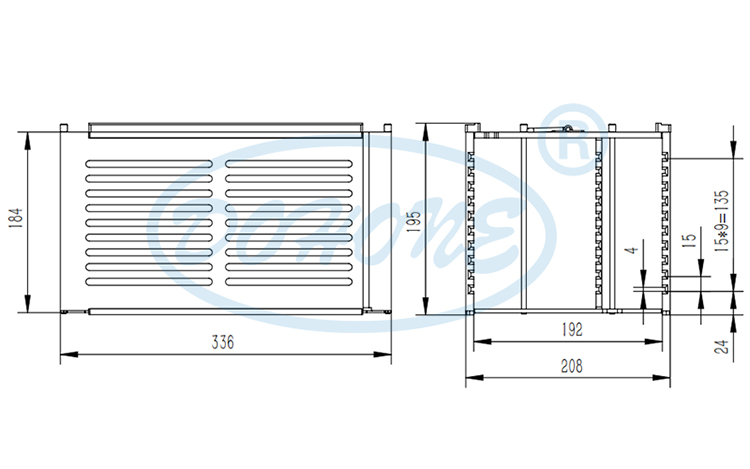

Size:336(L)X208(W)X184(H)mm
Material: Aluminum alloy 6061(AL6061)
Number of slots: 10 slots
Slot Pitch: 15 mm
Initial slot position: 24 mm
Product Process: CNC precision machining
Surface treatment:Anodization
Structure Type: Adjustable
Product Description
Dohone proudly introduces the new Lead Frame Magazine, featuring an innovative 10-slot adjustable structure that flexibly accommodates Lead Frames of different specifications and sizes. This enables multiple uses with one magazine and high compatibility, significantly reducing the costs associated with stocking and replacing multiple types of magazines, and helping production lines lower costs while increasing efficiency.
The slot spacing can be fine-tuned as needed to fit various package types and frame sizes, ensuring smoother transport and reducing the risk of jamming. Reliable and stable in semiconductor packaging, testing, storage, and transit, it effectively improves material handling efficiency.
With over 20 years of deep experience in the semiconductor carrier industry, we possess mature R&D design and precision manufacturing capabilities, strictly adhering to industry quality standards. We can customize Lead Frame Magazines according to your production line requirements, dimensions, loading capacity, materials, and ESD protection needs, offering a one-stop solution from structural design to batch delivery.
Whether for standard models or custom requirements, we respond quickly and deliver precisely. Contact us today for a tailored product solution and quote, and upgrade your production line with more efficient lead frame storage and transport carriers.
Key Features
1. Precision Machining: ±0.01mm critical dimension tolerance
2. Extended Durability: Imported POM/stainless steel, 5+ years service life
3. Smooth Operation: Mirror-finished interior for jam-free handling
4. Fool-proof Design: Unique guiding slots prevent misloading
5. Cleanroom Ready: ESD-safe option available (Class 1000)
6. Fast Delivery: 100+ standard models, 40% shorter lead time for custom orders.
Shipping Methods
We collaborate with clients to determine the optimal shipping method, prioritizing cost efficiency. For international small-volume orders, we typically use air freight or international courier services. For large-volume orders, sea freight is employed to ensure economical delivery.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
