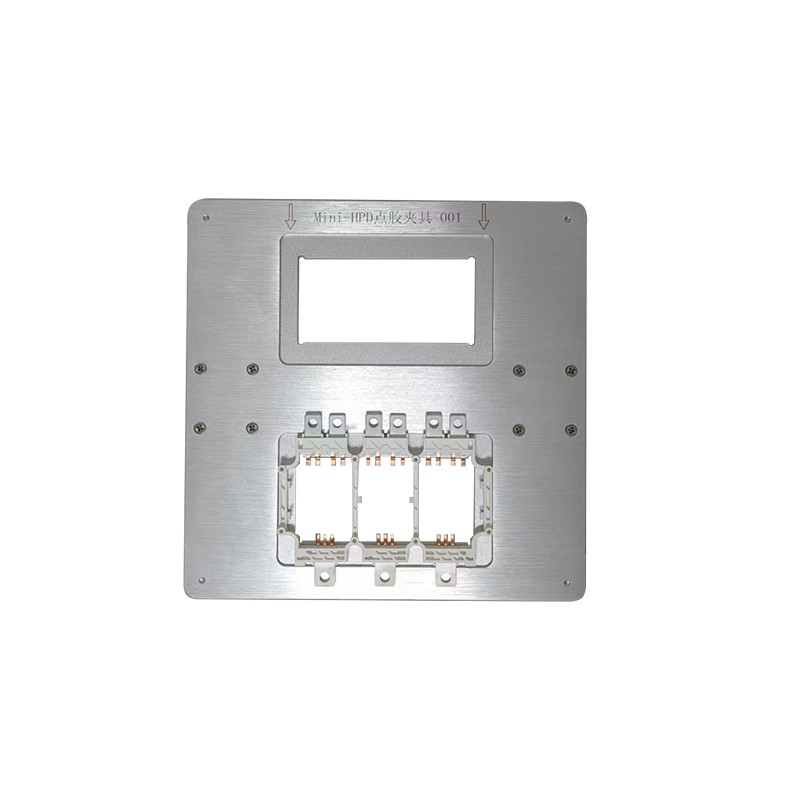

The DOHONE Mini-HPD dispensing limiting fixture is made of high-quality aluminum alloy with a natural color plain anodized surface treatment, presenting a uniform and clean appearance. Through multiple mechanical deburring and edge rounding processes, the fixture surface and all edges are free of burrs and sharp corners, ensuring smooth and safe handling while protecting the dispensing needle and surrounding components. The overall structure is rigid and dimensionally stable, adapting to the high-frequency loading and positioning demands of an automated dispensing production line for Mini-HPD modules. After extended exposure to dispensing cycles and minor mechanical impacts, the fixture maintains its original flatness without significant wear or distortion, delivering a long service life.

Formed in a single machining operation using high-precision CNC equipment, the fixture achieves stringent control over cavity dimensions, flatness, and positional tolerances. The Mini-HPD substrate or component seats precisely into the fixture without rocking or shifting, relying on the accurate fit of the limiting features. During the dispensing process, the fixture effectively eliminates module movement caused by nozzle contact pressure or table vibration, preventing glue spillage, off-target dispensing, inconsistent dot size, or needle damage. This fixture fundamentally improves dispensing accuracy and process consistency, significantly enhancing the first-pass yield and reliability of Mini-HPD encapsulation.

Custom Services

Founded in 2003, DOHONE specializes in semiconductor chip handling and storage solutions, having delivered 3,000+ customized product solutions to industry clients, all highly favored for their precision. We are confident in our ability to assist you. Simply provide your design specifications or samples, and we will deliver a tailored solution that meets your exact needs.

Q&A

Are you a factory or a trading company?

We are a factory.

How many staffs do you have in your factory?

Our company has nearly 70 staffs.

How many years have your company made this kind of equipment?

Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.

What shall we do if we do not have drawings?

Please send your sample to our factory, then we can copy or provide you with better solutions, please send us pictures or drafts with dimensions(Thickness, Length, Height, and Width), CAD or 3D file will be made for you if you placed the order.

What kinds of information do you need for a quote?

In order to quote for you earlier, please provide us with the following information together with your inquiry.

1.Detailed drawings(STEP,CAD,SOLID Works,DXF,PDF)

2.Material requirement(AL6061,AL7075,AL6063)

3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)

4.Quantity(per order/per month/annual)

5. Any special demands or requirements, such as packing, delivery, labels, etc.

6.when do you expect to need the product?

What is your MOQ?

For custom products, the minimum order quantity (MOQ) can only be determined after confirming the product requirements.
