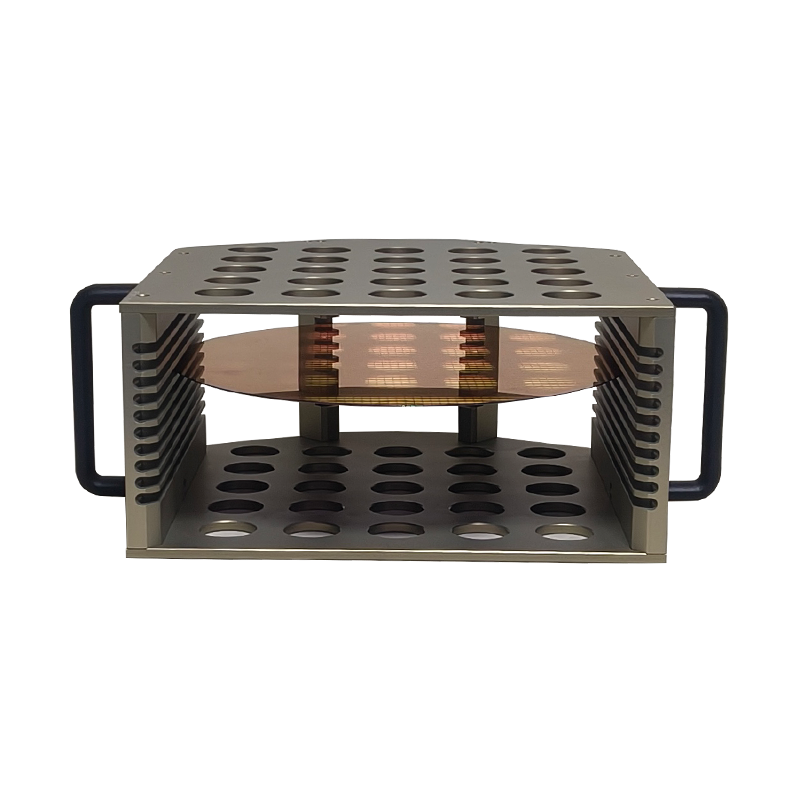

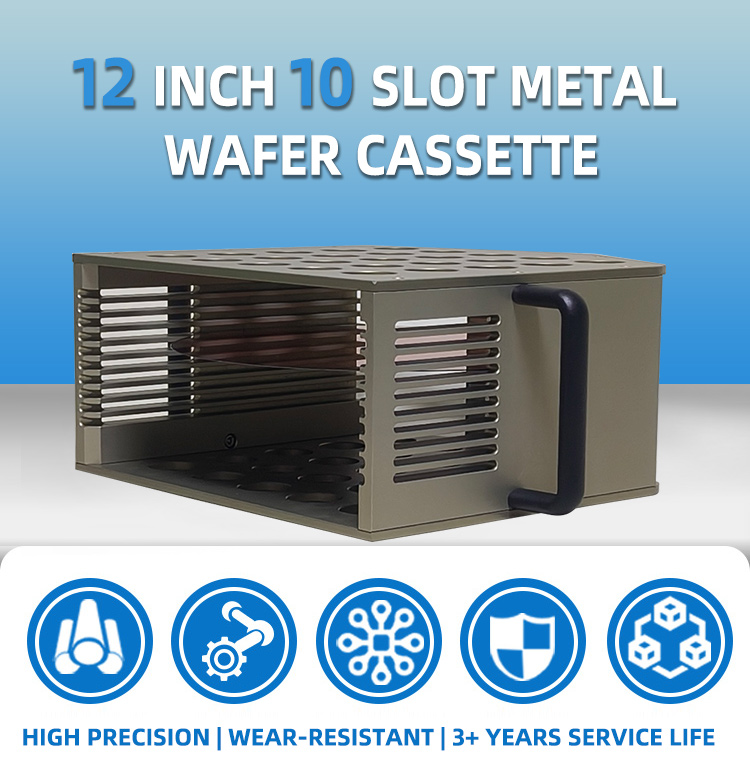

12 Inch 10 Slot I12-R0 Metal Wafer Cassette (10 mm Slot Pitch)
Product Name: 12 Inch 10 Slot I12-R0 Metal Wafer Cassette (10 mm Slot Pitch)
Number: DSF21I12-000-R0

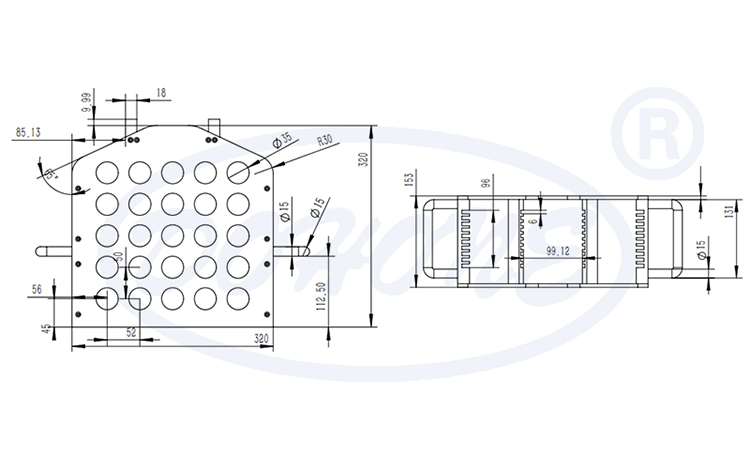

Size: 320(L)×320(W)×153(H)mm
Material: Aluminum alloy(AL7075)
Number of slots: 10 slots
Slot Pitch: 10 mm
Initial slot position: 33 mm
Product Process: CNC precision machining
Surface treatment: Hard Anodizing
Supported Wafer Diameter: 300 mm
Product Description
The DOHONE 12" Metal Wafer Cassette innovatively adopts a 10-layer double-sided straight-through slot structure design. Through a scientifically optimized slot layout, it achieves extensive and uniform contact with the wafers. Compared to traditional slot designs, it significantly increases the contact area while achieving more balanced contact pressure. This not only provides comprehensive and stable support for wafers, effectively dispersing gravitational loads and avoiding wafer micro-damage caused by localized stress concentration but also offers guided protection during loading and unloading operations, reducing risks of wafer misalignment and scratching. It ensures full-process safety protection for high-value wafers.
It is particularly suitable for application scenarios such as small laboratories, R&D institutions, and pre-production verification stages. Its lightweight characteristics reduce the intensity of manual operations and allow for easy adaptation to the spatial layouts of small wafer handling equipment. The 10-layer reasonable slot configuration meets the needs of small-batch wafer storage and transportation, enabling quick experimental verification without large-scale supporting equipment. The stable structural design and reliable protective performance ensure that wafer quality remains unaffected by external factors during critical verification stages like product development and process optimization. This helps users efficiently advance project progress while reducing early-stage R&D costs and risks.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What shall we do if we do not have drawings?
Please send your sample to our factory, then we can copy or provide you with better solutions, please send us pictures or drafts with dimensions(Thickness, Length, Height, and Width), CAD or 3D file will be made for you if you placed the order.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Detailed drawings(STEP,CAD,SOLID Works,DXF,PDF)
2.Material requirement(AL6061,AL7075,AL6063)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
For custom products, the minimum order quantity (MOQ) can only be determined after confirming the product requirements.
