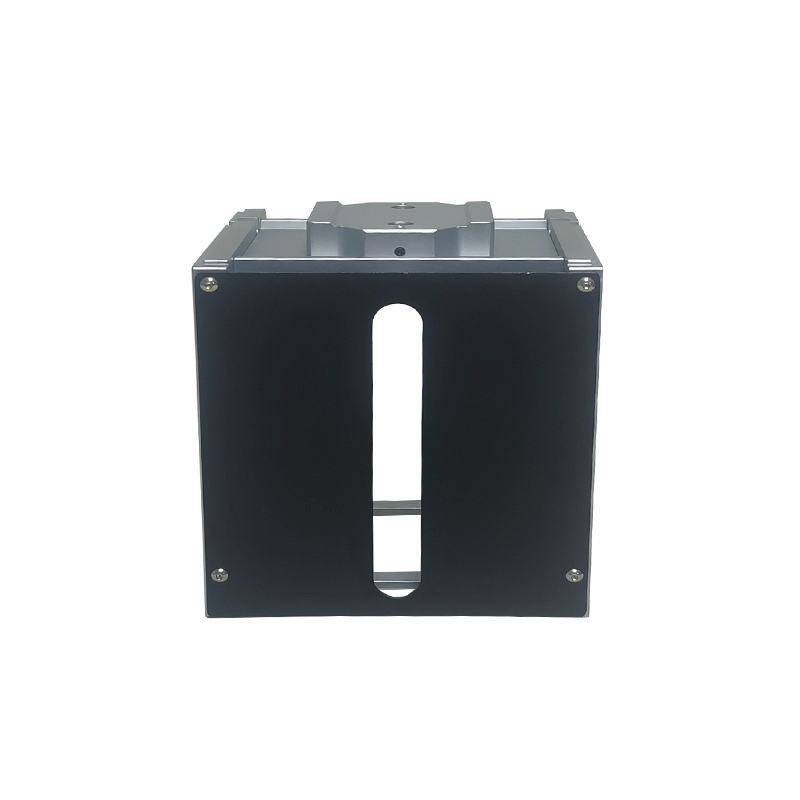

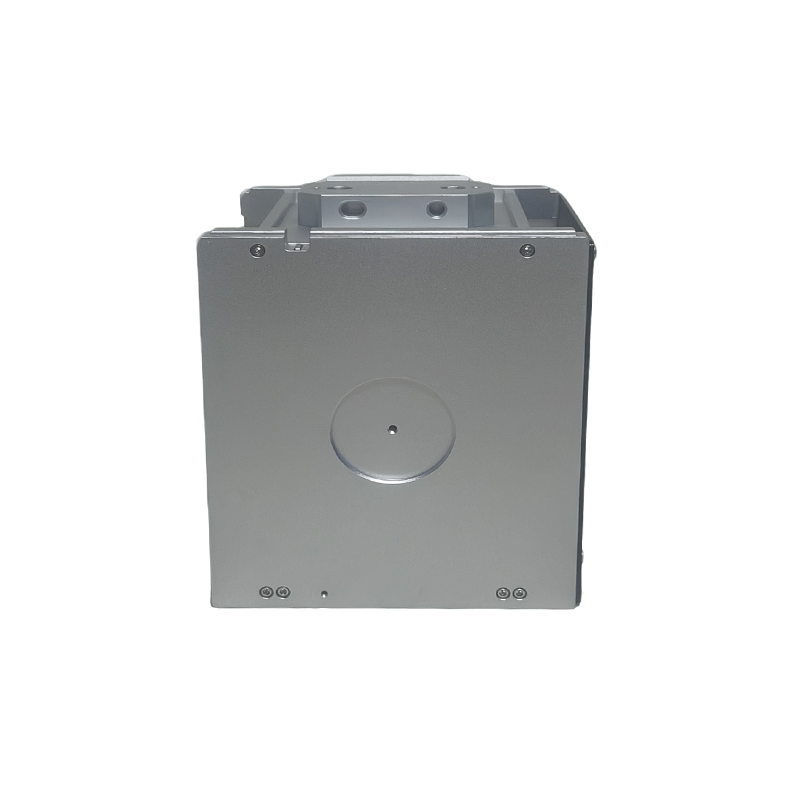

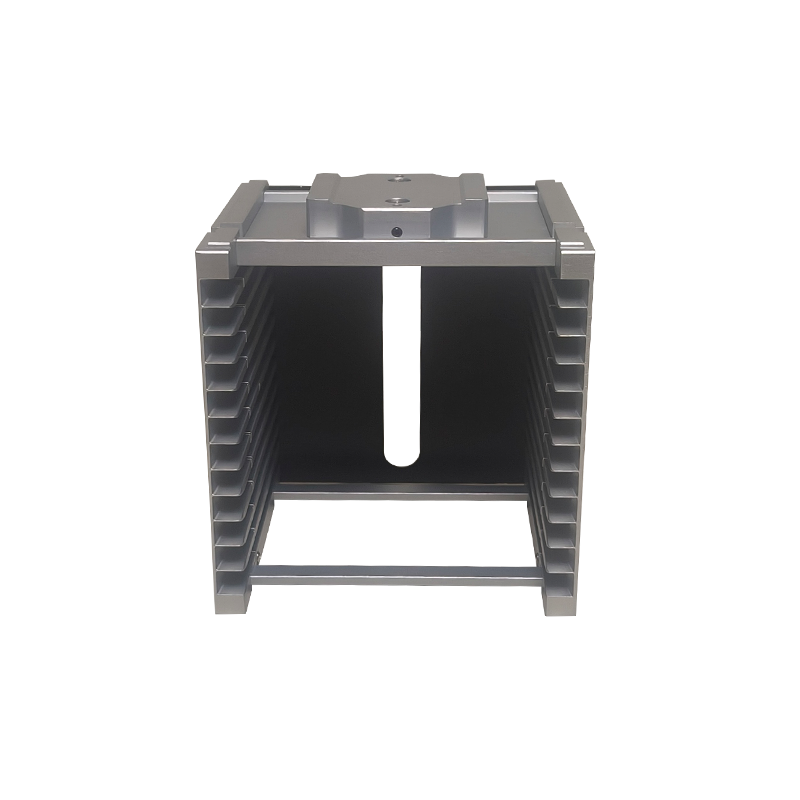

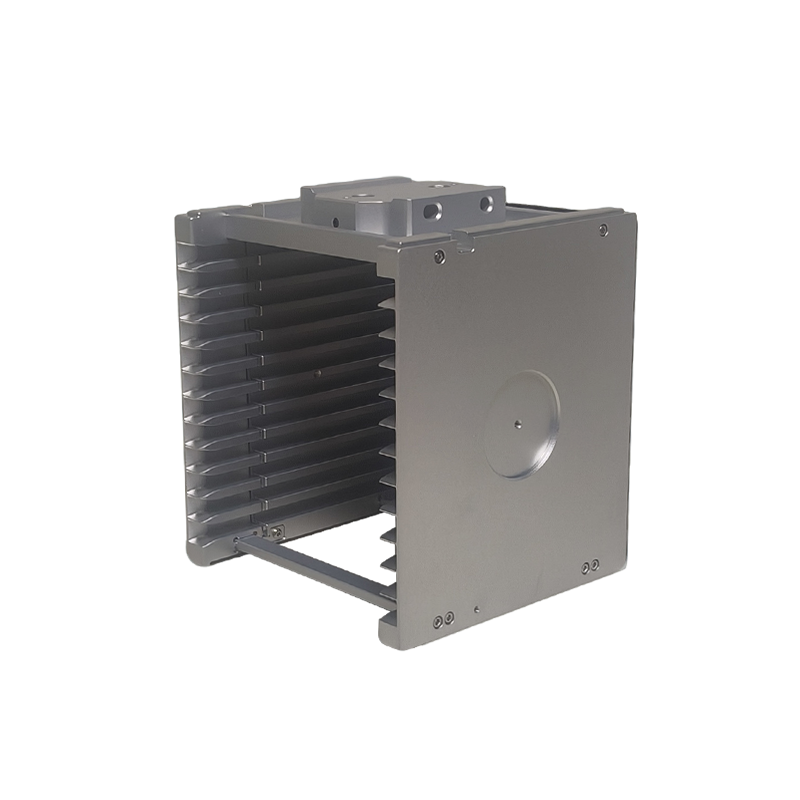

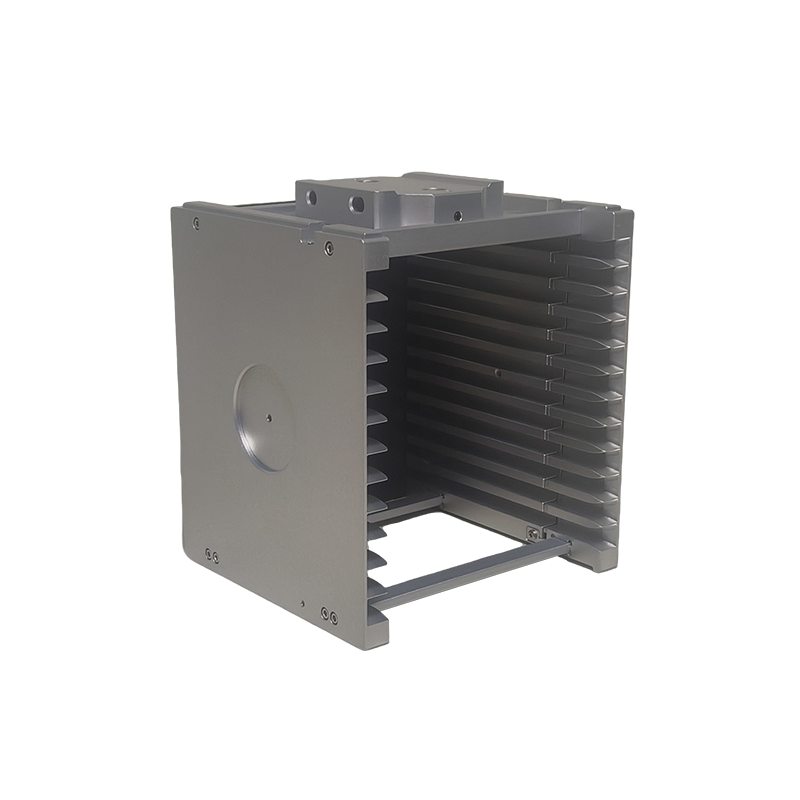

6 inch 12 Slot C16 Wafer Expander Ring Cassette (13mm Slot Pitch)
Product Name: 6 inch 12 Slot C16 Wafer Expander Ring Cassette (13mm Slot Pitch)
Number: DSF23C16-000-R2
Size: 164(L)×154(W)×193.5(H)mm
Material: Aluminum alloy 6061(AL6061)
Number of slots: 12 slots
Slot Pitch: 13 mm
Initial slot position:14 mm
Product Process: CNC precision machining
Surface treatment: Anodization
Product Description
Engineered with a top snap-lock structure, this 6-inch wafer expansion ring cassette seamlessly integrates with automated workshop robots to enable high-speed transfer of finished chips. The carrier features a sophisticated automatic locking mechanism that engages the moment it is lifted—the lock snaps shut instantly, securely sealing the loading port to fundamentally eliminate the risk of the expansion ring slipping or falling. When the carrier is returned to its designated equipment station, the locking mechanism automatically releases, allowing for quick and convenient loading and retrieval of the expansion ring.
The ingenious mechanical self-locking design provides a robust safety barrier throughout the entire material handling process, significantly reducing material loss caused by chip chipping or dropping. At the same time, it streamlines the loading and unloading procedures, facilitates smooth production line operation, and markedly improves chip processing turnover efficiency—fully meeting the demanding requirements of automated continuous production in modern semiconductor manufacturing lines.
Custom Services
Founded in 2003, DOHONE specializes in semiconductor chip handling and storage solutions, having delivered 3,000+ customized product solutions to industry clients, all highly favored for their precision. We are confident in our ability to assist you. Simply provide your design specifications or samples, and we will deliver a tailored solution that meets your exact needs.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Product Model or Pictures
2.Material requirement(AL6063,AL6061,AL7075)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
Standard products are available in stock with no minimum order quantity (MOQ) restrictions.
