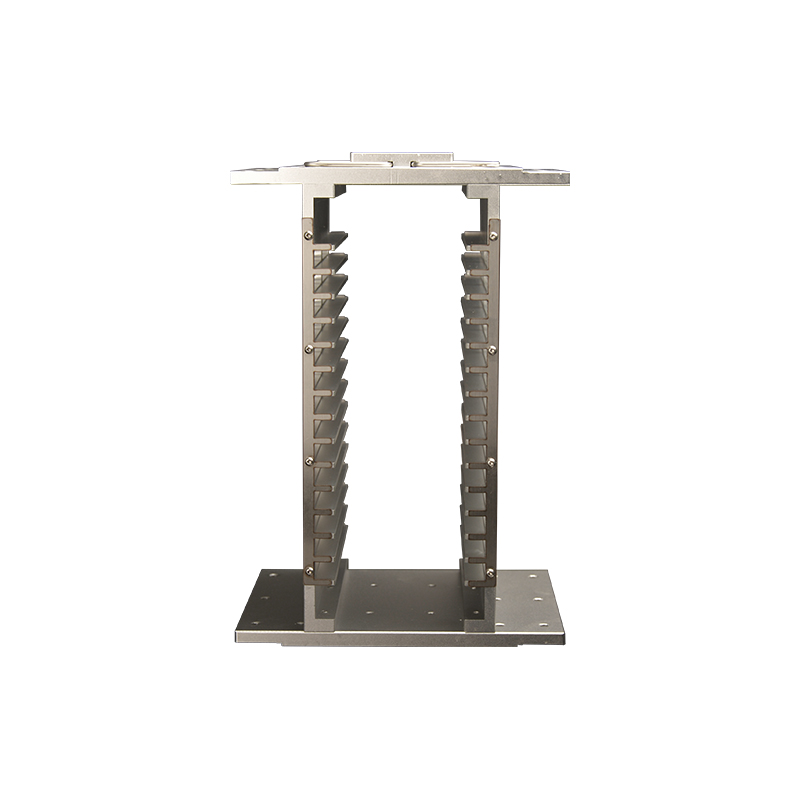

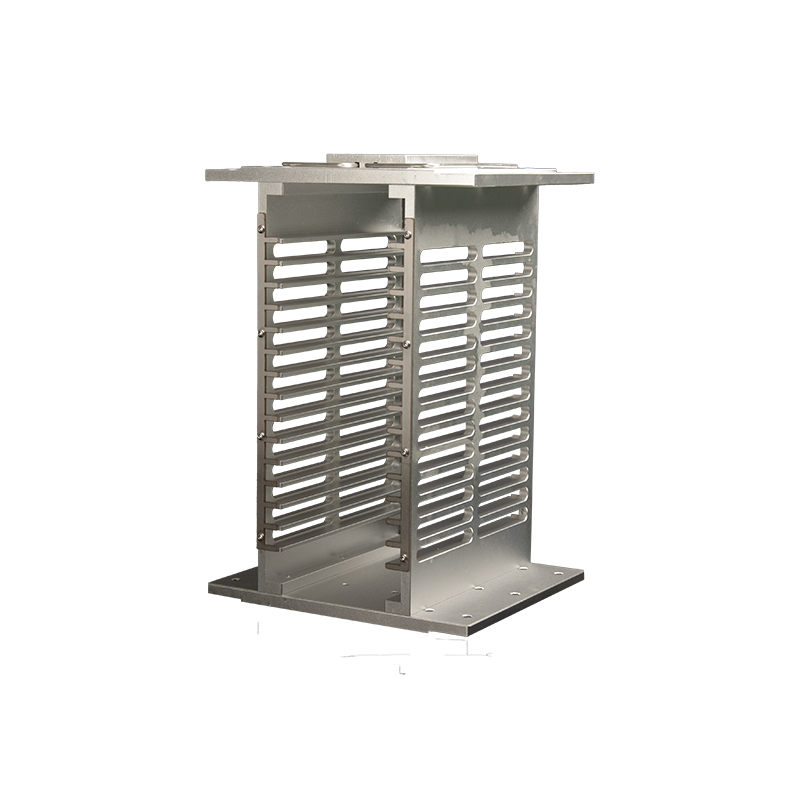

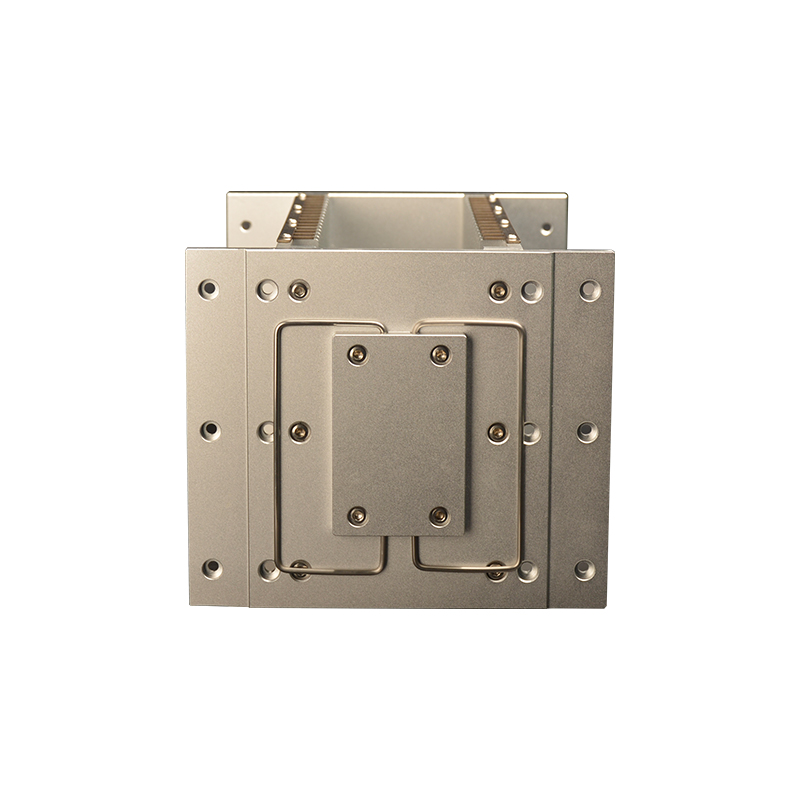

15 Slot Lead Frame Magazine with 107mm Inner Width
Product Name: 15 Slot Lead Frame Magazine with 107mm Inner Width
Number: WBF40B38-000-R0
Size: 209(L)×180(W)×300(H)mm
Material: Aluminum alloy 6061(AL6061)
Number of slots:15 slots
Slot Pitch:15 mm
Initial slot position: 39 mm
Product Process: CNC precision machining
Surface treatment: Anodization
Structure Type: Adjustable
Product Description
Custom Services
Founded in 2003, DOHONE specializes in semiconductor chip handling and storage solutions, having delivered 3,000+ customized product solutions to industry clients, all highly favored for their precision. We are confident in our ability to assist you. Simply provide your design specifications or samples, and we will deliver a tailored solution that meets your exact needs.
Key Features
1. Precision Machining: ±0.01mm critical dimension tolerance
2. Extended Durability: Imported POM/stainless steel, 5+ years service life
3. Smooth Operation: Mirror-finished interior for jam-free handling
4. Fool-proof Design: Unique guiding slots prevent misloading
5. Cleanroom Ready: ESD-safe option available (Class 1000)
6. Fast Delivery: 100+ standard models, 40% shorter lead time for custom orders.
Q&A
Are you a factory or a trading company?
We are a factory.
How many staffs do you have in your factory?
Our company has nearly 70 staffs.
How many years have your company made this kind of equipment?
Our company has been serving the semiconductor industry for over 20 years, with extensive expertise in design and manufacturing.
What shall we do if we do not have drawings?
Please send your sample to our factory, then we can copy or provide you with better solutions, please send us pictures or drafts with dimensions(Thickness, Length, Height, and Width), CAD or 3D file will be made for you if you placed the order.
What kinds of information do you need for a quote?
In order to quote for you earlier, please provide us with the following information together with your inquiry.
1.Detailed drawings(STEP,CAD,SOLID Works,DXF,PDF)
2.Material requirement(AL6061,AL7075,AL6063)
3.Surface treatment(Anodized，Hard Anodized，plating,sandblasting,brushing,etc)
4.Quantity(per order/per month/annual)
5. Any special demands or requirements, such as packing, delivery, labels, etc.
6.when do you expect to need the product?
What is your MOQ?
For custom products, the minimum order quantity (MOQ) can only be determined after confirming the product requirements.
